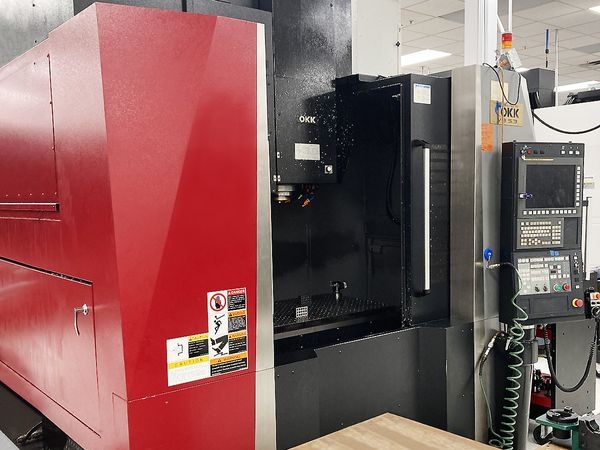

Pre-owned OKK VB53 2017 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This OKK Vertical Machining Center i...Read More
Seller Needs:
Payment:
Call For Financing
Specs:
X Axis Travel: 41.34"
Y Axis Travel: 20.87"
Z Axis Travel: 20.08"
Spindle Motor: 20 HP
Spindle Speed: 20,000 RPM
Spindle Taper: BT40
Tool Changer: 30 ATC
Rapid Rate X Axis: 787 IPM
Rapid Rate Y Axis: 787 IPM
Rapid Rate Z Axis: 787 IPM
Dimensions: 113.58" x 120.08" x 114.57"
Weight: 16,094 LBS
Max Table Load: 2,646 LBS
Y Axis Travel: 20.87"
Z Axis Travel: 20.08"
Spindle Motor: 20 HP
Spindle Speed: 20,000 RPM
Spindle Taper: BT40
Tool Changer: 30 ATC
Rapid Rate X Axis: 787 IPM
Rapid Rate Y Axis: 787 IPM
Rapid Rate Z Axis: 787 IPM
Dimensions: 113.58" x 120.08" x 114.57"
Weight: 16,094 LBS
Max Table Load: 2,646 LBS
Options:
Probe
Coolant Thru Spindle
Programmable Coolant
Glass Scales
Chipi Blaster Through Spindle (Coolant & Air)
Coolant Thru Spindle
Programmable Coolant
Glass Scales
Chipi Blaster Through Spindle (Coolant & Air)
Seller:
BrycS821
Location:
OH
