Machine Overview

Specs:
Bar Capacity: 2.75"
Chuck Size: 10"
Spindle Speed: 3,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 9.25"
Z Axis Travel: 18.11"
Rapid Rate Z Axis: 984 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 787 IPM
Max Turning Dia: 15.35"
Max Turning Length: 13.99"
Max Swing: 20.47"
Spindle Nose: A2-8

SUB SPINDLE - CHUCK SIZE 6"
SUB SPINDLE - BAR CAPACITY 1.69"
SUB SPINDLE - SPINDLE BORE 2.08"
SUB SPINDLE - SPINDLE NOSE 140MM FLAT NOSE
SUB SPINDLE - SPINDLE MOTOR 10 hp
SUB SPINDLE - SPINDLE SPEED 6,000 RPM
SUB SPINDLE / W-AXIS TRAVEL 20.47"
TURRET CAPACITY 12 STATION
TURRET TYPE BOLT-ON
LIVE MILLING Yes
LIVE MILLING SPEED 6,000 RPM
LIVE MILLING MOTOR 7.5 HP
DIMENSIONS 128" X 72" X 73"
WEIGHT 11,976 LBS

Dimensions: 128" x 72" x 73"
Weight: 11,976 LBS

AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
Options:
OSP-P300LA-e
Chip Conveyor
Tool Presetter
Live Tooling
Sub Spindle
Y Axis
Sub-Spindle (W-Axis)
C-Axis
10" Hollow 3-Jaw Hydraulic Chuck and Actuator Package with 10" Kitagawa B210 3-Jaw Chuck on Main Spindle
6" Kitagawa B206 2-Jaw Hydraulic Chuck on Sub
Chuck Air Blow Option on Both Main and Sub
100 PSI Okuma High Output Coolant System
160GB Hard Disk
3GB Ram
Ethernet Plus (4) USB Ports
High Torque, High Response Motion Control System
Advanced One Touch IGF
Helical Cutting
Spare M Codes (4-Sets)
Lap 4
Tool Offsets
User Task III - Included
All tooling seen in turret photo included (to be verified by buyer)
(4) Adjustable Angel Tool ER-32 External Coolant
(2) Axial/Face/Sub Spindle ER-32
(1) ID L300/L3000MW/MYW 1.2" & 1" Main & Sub
(1) OD I-S LB3000MYW 1" Main/Sub Spindle Double
Description:

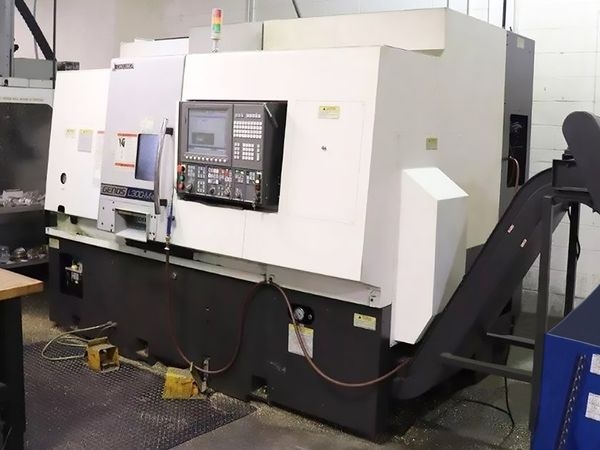

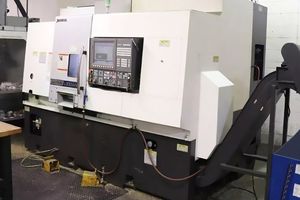

This 2017 OKUMA GENOS L3000E offers robust functionality for precise machining. Its significant specifications include a swing over bed of 20.47 inches and a maximum cutting diameter of 15.35 inches. The machine allows for a cutting length of up to 13.99 inches, with travels on the X, Y, and Z axes of 9.25 inches, 3.93 inches, and 18.11 inches, respectively. Capable of accommodating a 10-inch chuck size and a bar capacity of 2.75 inches, this equipment is suited for various industrial needs.

The spindle motor provides 20 horsepower with a speed of 3,000 RPM, supported by a sub spindle featuring its own 10 horse power motor, capable of reaching 6,000 RPM. The rapid traverse rate varies across the axes, with the X-axis at 787 in/min, the Y-axis at 394 in/min, and the Z-axis achieving speeds up to 984 in/min. The turret, comprising 12 stations of bolt-on type, complements the machine's live milling feature with a speed of up to 6,000 RPM driven by a 7.5 horsepower motor.

Measuring 128 x 72 x 73 inches and weighing approximately 11,976 pounds, the GENOS L3000E is equipped with an OSP P300LA-e CNC. Additional components include a sub spindle with W-axis, Y-axis, C-axis, and live milling capabilities. The main spindle benefits from a 10-inch hollow 3-jaw hydraulic chuck, partnered with a 6-inch hydraulic chuck on the sub spindle. Both main and sub spindles feature the chuck air blow option. Maintenance and operational features include a side discharge chip conveyor and a high output coolant system rated at 100 PSI.

Technological enhancements such as a 160GB hard disk, 2GB RAM, Ethernet, and USB ports ease data management. The advanced motion control system, one-touch IGF, helical cutting capacity, and additional M codes optimize performance. A tool touch setter and spare tooling enhance versatility, although tooling needs to be confirmed by the buyer. The machine operates with the following recorded hours: running at 6,713 hours, operating at 3,912 hours, cutting at 3,019 hours, and spindle running at 2,312 hours as of November 15, 2024.

Available for immediate inspection and purchase, this machine is ready to meet your production demands.
