Used OKUMA LB35II CNC Lathe

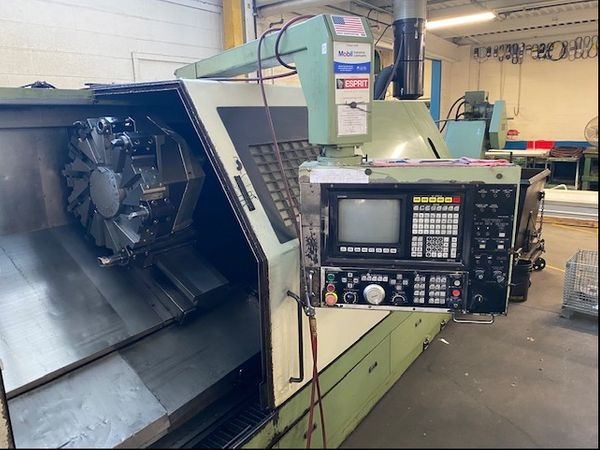

Pre-owned OKUMA LB35II 1993 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a OSP5020L-G control. This CNC Machine is currently located in Michigan. This OKUMA CNC Lathe is available for a limited time.Get a quote today on this LB35II before it's gone.

Specs:
Swing Over Bed: 27.56”
Turning Diameter: 17.72”
Work length 78.74”
Chuck Diameter: 15”
X axis: 12.99”
Z axis 81.50”
Speed 3200 rpm (2500 rpm 15” chuck)
V12 turret: 1”x1” turning tools, 2” max boring bar
Tow Along Tailstock Programmable with #5 MT
Main Spindle 40 hp
LNS Auto Rest ARM130 (.75” – 5.12” capacity)
Chip Conveyor, side discharge
Thru spindle tube: 3.05”
Spindle nose: JIS-A2-8

Dimensions:
Weight:
Options:
OSP5020L-G
Chip Conveyor
Tailstock
Tow Along Programmable Tailstock
LNS Auto Rest Arm
Price:
$24,500
Owner:
Harry (Machine Shop in USA)
