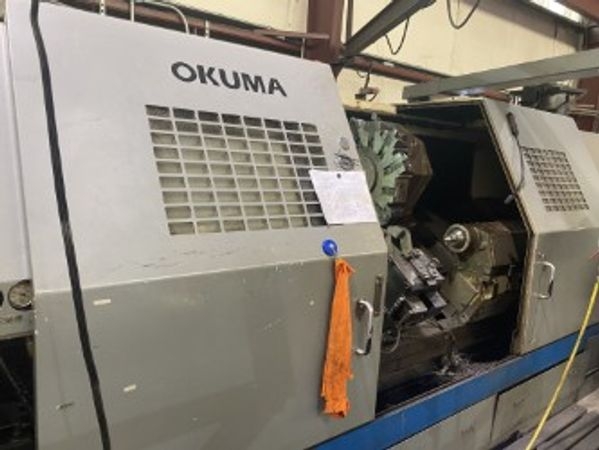

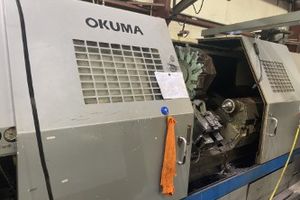

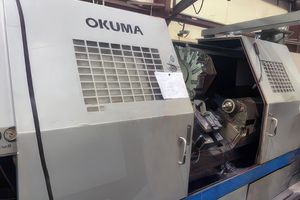

2000 OKUMA LB35II

2000 Okuma LB35II – CNC Lathe Specifications

General:

Machine Type: CNC Horizontal Lathe

Model: LB35II

Year: 2000

CNC Control: Okuma OSP-7000L / OSP-P200LA (varies by unit)

Capacity:

Max Swing Over Bed: 28.4 in (720 mm)

Max Turning Diameter: 19.29 in (490 mm)

Max Turning Length (Z-Axis): 78.7 to 80.0 in (2000 mm)

Chuck Size: 20 in (Hydraulic 3-jaw chuck)

Bar Capacity / Spindle Bore: 6.5 in (165 mm), up to 7.08 in in “Big Bore” versions

Axis Travel:

X-Axis Travel: 17.0 in (432 mm)

Z-Axis Travel: 80.0 in (2032 mm)

Spindle:

Spindle Nose: A2-15

Spindle Speed: Up to 1,400 RPM

Spindle Motor: 40 HP AC Drive

Tooling & Turret:

Number of Turret Stations: 12

Turret Type: Drum turret

Tailstock: Yes (programmable hydraulic, MT #5 or similar)

Features & Options (varies by configuration):

Chip Conveyor

Programmable Tailstock

Steady Rest

Coolant System

Tool Presetter

Big Bore Spindle (optional upgrade)

Dimensions & Weight:

Approx. Machine Weight: 28,300 lbs (12,837 kg)

Approx. Footprint: 227? L × 91? W × 92? H
