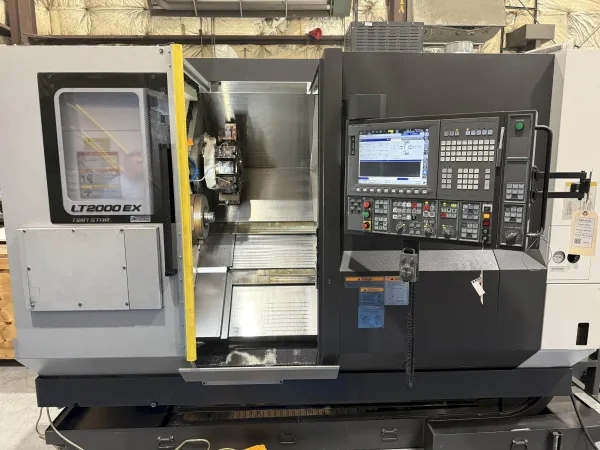

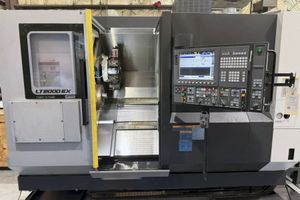

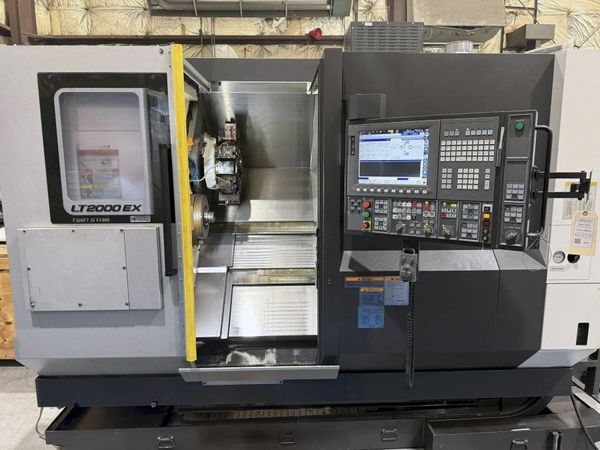

2017 OKUMA LT2000EXMY

This 2017 OKUMA LT2000EXMY is a machine that includes many helpful features for various tasks. It comes with Tailstock, Live Tooling, a Sub Spindle, and Y Axis. This machine can handle a wide range of tasks due to its versatile design.

The machine is equipped with CNC Control, specifically the OSP-P300LA, and it operates on 8 axes. This machine offers a swing capacity of 15.75 inches and can accommodate a turning diameter of 8.28 inches. The center distance of 38.58 inches allows for larger workpieces, while the chuck size of 8 inches caters to significant workloads. It also has a bar capacity of 2.04 inches, making it suitable for varied production work.

The X and X2 Axis Travel of 8.07 inches, Y Axis Travel of 3.74 inches, and Z Axis Travel of 27.56 inches provide ample range for most machining tasks. The machine also includes B Axis Travel for the sub-spindle at 28.74 inches and a precise C Axis Index of 0.001. It offers rapid traverse speeds of 1,181, 591, and 1,575 ipm for X, Y, and Z axes, respectively.

With a Spindle Nose of A2-6 and a maximum spindle speed of 6,000 rpm, this machine can handle a variety of tasks with ease. The main motor is rated at 15 hp, providing the necessary power for demanding tasks. Tailstock is included as a standard feature, enhancing its utility further.

The Y Axis and Live Tooling functions allow for complex operations, with the tooling speed reaching up to 6,000 rpm, powered by a 7.5 hp motor. The Sub Spindle features a 6-inch chuck, another A2-6 spindle nose, and also reaches speeds of 6,000 rpm, supported by a 15 hp motor. Turret capacity is significant with both the upper and lower turrets allowing for 16 stations each.

Regarding dimensions, the machine measures 135 inches in length, 98 inches in width, and 94 inches in height, making it a substantial piece of equipment. It weighs 19,800 pounds, reflecting its solid construction.

This machine offers many features, making it a valuable asset for various machining tasks. Whether for simple or more complex applications, it is well-suited for multiple needs.
