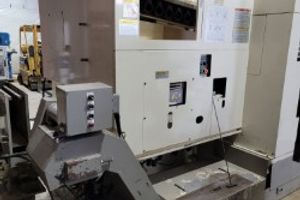

Pre-owned OKUMA MX55VB 1999 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Michigan. This OKUMA Vertical Machini...Read More
Buy Now:
Payment:
Specs:

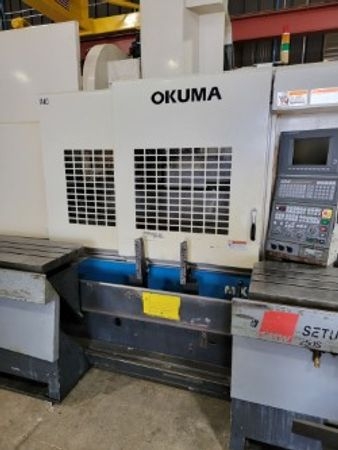

Okuma MX55VB: Vertical CNC Milling Machine

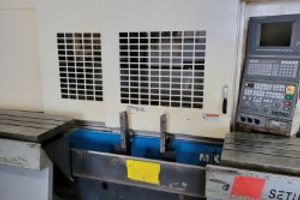

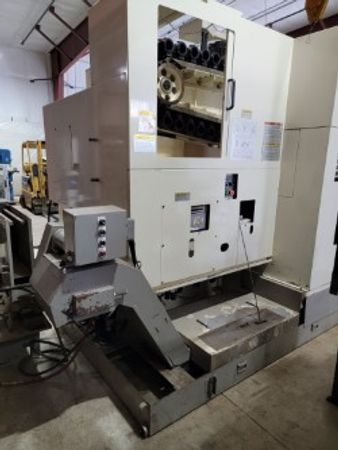

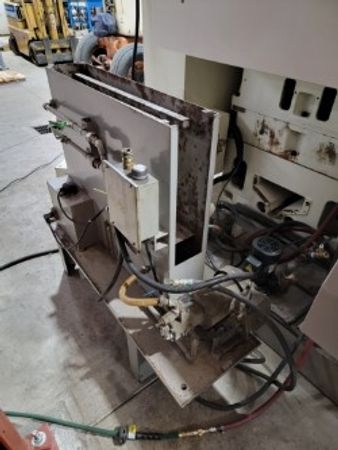

Machine is equipped with coolant tank, chip conveyor, manual pallet changer with (3) pallets (500mm x 1000mm) and table adapter mount for pallets.
Machine is located in Muskegon, Mi and currently has power connected.
Buyer responsible for rigging and transportation of the machine from Muskegon, Mi to the buyer’s location.
See machine specifications below for more details.
Specifications:
Condition:
used
Dimensions:
8' x 11' x 10'
Weight:
18,000 LBS
Equipped with:

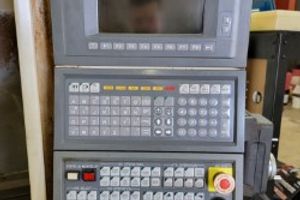

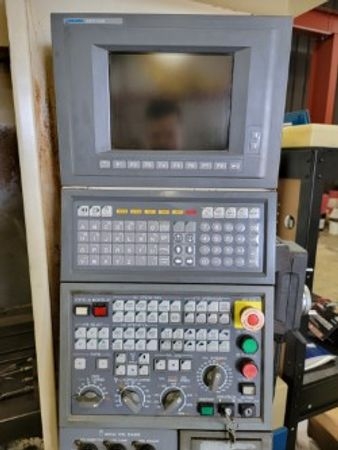

OSP-700M CNC Control RS-232C Port 6,000 RPM, CAT-50 Spindle, M-Code Controlled Chip Conveyor
X:
42.0 in
Y:
22.0 in
Z:
17.7 in
Power:
15.0 hp
Rpm:
5000.0 rpm
ATC Magazine:
20.0
Taper:
50
Table-w:
51.0 in
Table-l:
22.0 in
# axis:
3
Table size:
55.18" x 22.05"
Maximum table load:
1,500 LBS
Spindle nose to table top:
7.8" - 28.6"
X-axis travel:
41.3"
Y-axis travel:
22.05"
Z-axis travel:
17.72"
Rapid traverse rates (x,y,z):
1181, 1181, 945 IPM
Spindle motor:
15 HP
Spindle taper:
CAT-50
Spindle speeds:
6,000 RPM
Tool capacity:
20 Stations
Tool change time:
2 Seconds
Max. tool weight:
26 LBS
Pallet Changer:
SMW 250s, manual changer, 3 pallets (19-5/8” x 39-3/8”)
Machine is equipped with coolant tank, chip conveyor, manual pallet changer with (3) pallets (500mm x 1000mm) and table adapter mount for pallets.
Machine is located in Muskegon, Mi and currently has power connected.
Buyer responsible for rigging and transportation of the machine from Muskegon, Mi to the buyer’s location.
See machine specifications below for more details.
Specifications:
Condition:
used
Dimensions:
8' x 11' x 10'
Weight:
18,000 LBS
Equipped with:
OSP-700M CNC Control RS-232C Port 6,000 RPM, CAT-50 Spindle, M-Code Controlled Chip Conveyor
X:
42.0 in
Y:
22.0 in
Z:
17.7 in
Power:
15.0 hp
Rpm:
5000.0 rpm
ATC Magazine:
20.0
Taper:
50
Table-w:
51.0 in
Table-l:
22.0 in
# axis:
3
Table size:
55.18" x 22.05"
Maximum table load:
1,500 LBS
Spindle nose to table top:
7.8" - 28.6"
X-axis travel:
41.3"
Y-axis travel:
22.05"
Z-axis travel:
17.72"
Rapid traverse rates (x,y,z):
1181, 1181, 945 IPM
Spindle motor:
15 HP
Spindle taper:
CAT-50
Spindle speeds:
6,000 RPM
Tool capacity:
20 Stations
Tool change time:
2 Seconds
Max. tool weight:
26 LBS
Pallet Changer:
SMW 250s, manual changer, 3 pallets (19-5/8” x 39-3/8”)
Seller:
LorrK188
Location:
MI
