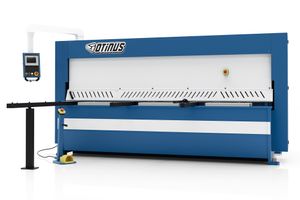

2026 OTINUS 1/4" X 120" CYBTOUCH8

ID:14897
Brand:OTINUS
Model: 1/4" X 120" CYBTOUCH8
Year:2026
Category:Shear
Location:Illinois

Located In Illinois

SHIPPING COST :

OTINUS 1/4" X 120" CYBTOUCH8 AI Chat

Machine Overview

Specs:

Capcity ?450 N/mm2
6 mm
Capcity ?750 N/mm2
4 mm
Cutting Length 120 in 3060 mm
Rake Angle 1.6 °
Motor Power 11.0 kW
Number of Holddowns 17 pcs.
Strokes Per Minute 20 cuts/min
Capcity of Oil Tank 42 gal 160 l
Backgauge Range 30 in 750 mm
Backgauge Motor 0.55 kW
Approx. Weight 12222 lb 5500.0 kg
Dimension A 128 in 3260 mm
Dimension B 17 in 430 mm
Dimension C 52 in 1320 mm
Dimension D 19 in 480 mm
Dimension E 39 in 1000 mm
Dimension G 31 in 800 mm
Dimension H 62 in 1570 mm
Controller CybTouch 8w
(Mounted on a swivel arm on the left-hand side of the machine)
Automatic calculations of the shear functions upon material specifications.
Automatic blade gap.
Automatic back gauge correction.
Automatic back gauge foldaway.
2/3- position sheet support.
Return to sender function (RTS).
Front or back gauge management.
Parking position (foldaway function).
Hold-downs pressure management.
System pressure management.
Large cutting sequences and programs can be memorized.vivid colors.
Simple pages, large keys, clear display with all the information the operator needs.
Intuitive and user-friendly interface.
Complete programming of parts in seconds.

Description:

Pre-owned OTINUS 1/4" X 120" CYBTOUCH8 2026 Shear. This Shear has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Illinois. This OTINUS Shear is available for a limited time. Get a quote today on this 1/4" X 120" CYBTOUCH8 before it's gone.
