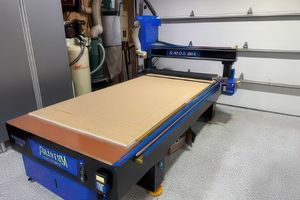

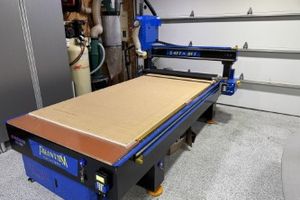

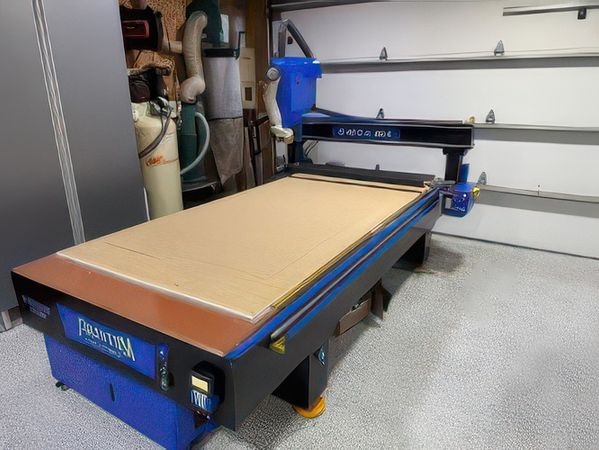

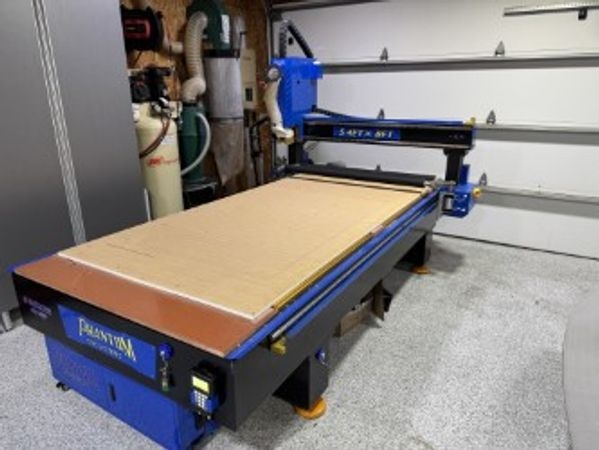

2021 PHANTOM S SERIES 4X8 48 DSP

Table Size: 48" x 96" (4' x 8')
Control: DSP A11 handheld pendant controller
X Axis Travel: 48" (1,219 mm)
Y Axis Travel: 96" (2,438 mm)
Z Axis Travel: 12" (305 mm)
Spindle: 6 HP (6.1 HP) air-cooled VFD spindle
Collet Type: ER32
Spindle Speed: Up to 18,000-24,000 RPM (varies by setup)
Spindle Motor:
Drive System: Rack & pinion X/Y, ballscrew Z
Linear Guides: Industrial linear rails on all axes
Table Type: Multi-zone vacuum table with T-slot clamping
Hold Down: Vacuum plus integrated clamp slots
Dust Collection: Included dust hood
Power: 240V single-phase
Material Rollers: Pneumatic pressure rollers standard
Software Compatibility: Vectric Aspire, VCarve, EnRoute, etc.
Footprint: 72" W x 125-140" L
Height: 65-75"
Weight: 2,500-3,500 lbs

Dust Collector
Vacuum System
