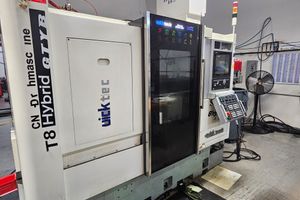

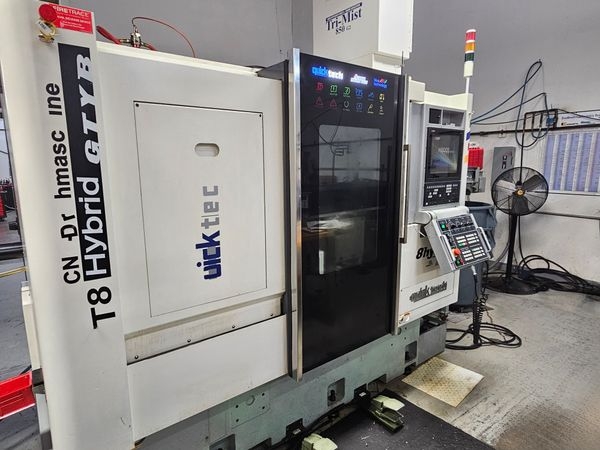

Main Spindle Capacity
Swing over bed: 19.7”
Swing over cross slide: 11.8”
Maximum bar working capacity: 2.56” (65mm)
Maximum turning length: 13.8”
Collet Chuck Type: DIN KK6-185E60B (60mm)
Spindle nose: A2-6
Hole through draw tube: 2.6” (66mm)
Spindle speed range (std.:) 4000 RPM
Spindle motor: 15HP
C axis increment: .001 degrees
Sub Spindle Capacity
Maximum bar working capacity: 1.65” (42mm)
Maximum turning length: 13.2”
Collet Chuck Type: DIN KK5-173E/42B (42mm)
Spindle nose: A2-5
Hole through draw tube: 1.26”
Spindle speed range: 4000 RPM
Spindle motor: 7.5HP Integral motor
C axis increment: .001 degrees
Travel and Feed
Maximum cross travel (turret X1 axis): 6.3”
Maximum off center travel (turret Y1 axis): 3.15” (+/- 1.57”)
Maximum longitudinal travel (turret Z1 axis): 14.76"
Maximum cross travel (X2 axis): 18.5”
Maximum vertical travel (Y2 axis): 14.76”
Maximum longitudinal travel (Z2 axis): 13.2"
Maximum B axis travel (B1, B2 axes): 360 degrees / .001 degree resolution
X1, X2, Y1, Y2, Z1, Z2, B1, B2 servo motors: 2 HP
Ballscrew diameter x pitch: 1.25” (32mm) x 10mm pitch
Rapid traverse rate: 1181”/ min.
Tooling System (Main)
Tooling type: BMT-55 servo turret
Number of tools: 12
Number of live tool stations: 12
Square shank size: 1” (25mm)
Boring bar capacity: 1.25” (25mm)
Turret index time: .3 secs / station, .5 secs 180 degrees
Live tool spindle motor: 5HP
Live tool spindle speed: 4000
Tooling System (Sub)
Tooling type: Gang Tool/Servo Y axis/KM-25 quick change Number of turning tools 5 O.D., 9 I.D.
Square shank size: .75” (20mm)
Boring bar capacity: .75” (ER-20)
B axis: 360 degrees
B axis index time: .3 secs / 90 degrees, .6 secs 360 degrees
Number of live tools: 12
Live tool spindle motor: 2HP.
Live tool spindle speed: 4000
Live tool shank: ER-20 collet
General
Positioning accuracy: +/- .0002" full stroke
Repeatability: +/- .00015"
Coolant tank capacity: 65 gallons
Coolant pump motor: 1 HP flood / 3HP high pressure
Machine Power Source: 208/220 Volts, 3 Phase 100 Amps**
Hydraulic pump motor: 1HP
Machine Weight 13,420 LBS
Floor Space with chip conveyor 135" X 80" x 77"
