Seller Needs:
$49,500|
1915
|
0

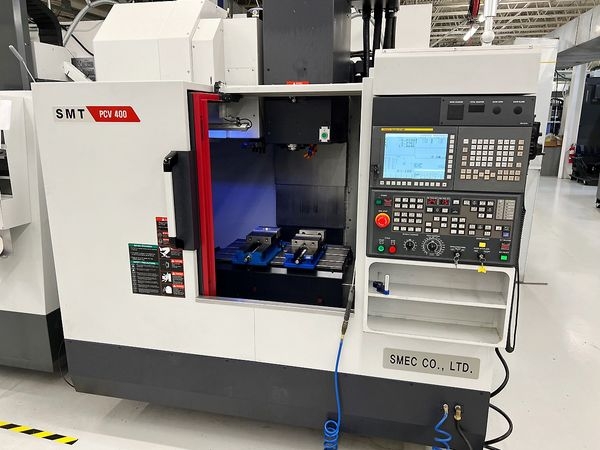

Pre-owned LIKE NEW 2017 SAMSUNG PCV400 Vertical Machining Center. This Vertical Machining Center will not disappoint you. with below-average cutting time and is Under Power for Your Quality Assurance. Equipped with...Read More
Seller Needs:
Payment:
Rigging:
$1,500
Specs:
Table Size: 16.54" x 29.53"
Max Table Load: 1,102 LBS
X Axis Travel: 27.56"
Y Axis Travel: 16.54"
Z Axis Travel: 20.08"
Spindle Nose to Table Top: 5.12" - 25.20"
Spindle Speed: 10,000 RPM (Big Plus Spindle)
Spindle Taper: BT40 (Dual Contact)
Spindle Motor: 25 HP
Tool Changer: 24 + 1 Sidemount ATC
Tool Changer Style: Dual Arm, Sidemount
EQUIPPED WITH:
Fanuc 0i-MF CNC Control
10,000 RPM Big Plus Spindle
Z-Axis H.P. with 3,250 lbs of Thrust (Upgrade)
Chip Conveyor
2 MB Memory
High Speed Machining with Look-Ahead
Rigid Tapping
USB, Ethernet, RS232 and PMCIA Flash Memory Card Interface
Under Power!!
Dimensions: 83" x 90" x 1000"
Weight: 11,684 LBS
Max Table Load: 1,102 LBS
X Axis Travel: 27.56"
Y Axis Travel: 16.54"
Z Axis Travel: 20.08"
Spindle Nose to Table Top: 5.12" - 25.20"
Spindle Speed: 10,000 RPM (Big Plus Spindle)
Spindle Taper: BT40 (Dual Contact)
Spindle Motor: 25 HP
Tool Changer: 24 + 1 Sidemount ATC
Tool Changer Style: Dual Arm, Sidemount
EQUIPPED WITH:
Fanuc 0i-MF CNC Control
10,000 RPM Big Plus Spindle
Z-Axis H.P. with 3,250 lbs of Thrust (Upgrade)
Chip Conveyor
2 MB Memory
High Speed Machining with Look-Ahead
Rigid Tapping
USB, Ethernet, RS232 and PMCIA Flash Memory Card Interface
Under Power!!
Dimensions: 83" x 90" x 1000"
Weight: 11,684 LBS
Options:
Fanuc 0i-MF
Chip Conveyor
Programmable Coolant
10,000 RPM Big Plus Spindle
High Speed Machining with Look Ahead
2MB Memory
Upgraded Z-Axis H.P and Thrust
Chip Conveyor
Programmable Coolant
10,000 RPM Big Plus Spindle
High Speed Machining with Look Ahead
2MB Memory
Upgraded Z-Axis H.P and Thrust
Seller:
WarrB696
Location:
MD
