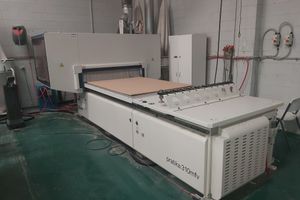

2021 SCM Pratix S

X Axis Travel: 3,120mm
Y Axis Travel: 1,685mm
Z Axis Travel: 250mm
Table Size: 2,486mm x 1,255mm
Spindle Speed: 1,500 - 24,000 rpm
Weight: Roughly 3 tonne

With two modules available - 310mfv and 310mfvr - the SCM Pratika is a numerically controlled CNC router with 3 axes (X, Y and Z) for the processing and machining of particle board, MDF and solid panels. With a useful bed size for 2400mm x 1200mm sheets, the machine only requires one operator.

Electro Spindle Routing Unit
Quick release tool holder type HSK F63
Rotation speed 1,500 - 24,000 rpm
Power (S1) 8 kW (11 Hp)
Power (S6) 9.5 kW (13 Hp)
Maximum power range 12,000 - 18,000 rpm
TR11 Automatic Tool Change Magazine
Capacity of tool change 11
Centre distance between stations 130mm
Maximum weight per tool 4.5 kgs
Maximum weight tool magazine 25 kgs
Drilling Unit
Main motor power for spindles 2.2 kW (3 Hp)
Rotation of spindle with invertor Speed 4,000 - 8,000 r/p/m
Number of vertical drilling spindles 7 (4 right & 3 left)
Centre distance of spindles 32mm
Drill attachment type M10
Vertical pneumatic stroke of drilling unit 250mm
Vertical pneumatic stroke of each spindle 60mm

Dust Collector
Vacuum System
