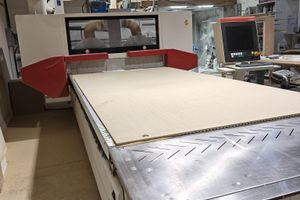

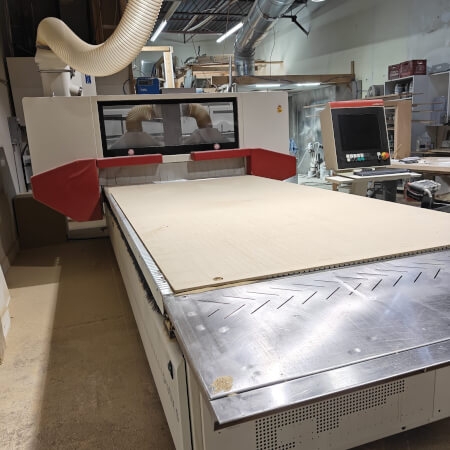

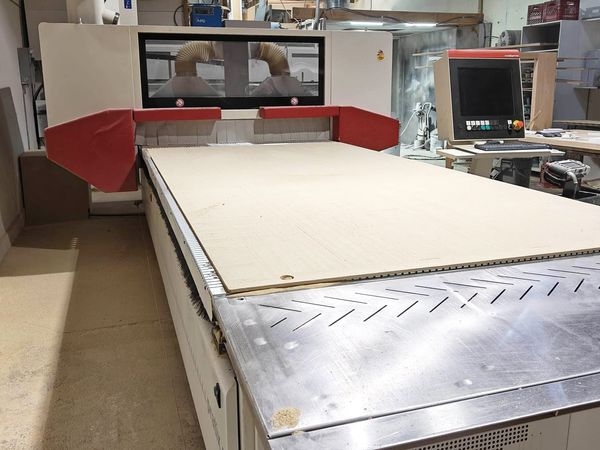

2017 SCM PRATIX S15 C

ID:13709
Brand:SCM
Model: PRATIX S15 C
Year:2017
Category:Router
Location:USA

Located In USA

500-1000 Hours

SCM PRATIX S15 C AI Chat

Loading ...

Machine Overview

Specs:

Key Features:
Vacuum Rake System: Includes aluminum vacuum table with MATRIX square grid pattern for versatile fixturing.
Vacuum Pumps: 2
Boring Head: 3 HP motor, 6,000 RPM with 12 vertical spindles (7 on X-axis, 5 on Y-axis).
Routing: 13 HP electro spindle (9.5 kW), speeds 1,500-24,000 RPM.
Automatic Tool Changer (ATC): 14-position tool rack for efficient tool swaps.
High-Speed Precision: X/Y Axis at 115 FPM (35 MPM), Z Axis at 82 FPM (26 MPM).
Closed Loop AC Servo Drive: High precision with rack & pinion system in X & Y, and ground ball screw in Z.
Working Field: X-axis 145.2” (3,686 mm), Y-axis 61.2” (1,555 mm), Z-axis stroke 9.8” (250 mm). Max material thickness 4” (100 mm).
PC Front-End: 17” LCD display, ergonomic keypad, USB ports, RS-232

Description:

Pre-owned SCM PRATIX S15 C 2017 Router. This Router has 500-1000 cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This SCM Router is available for a limited time. Get a quote today on this PRATIX S15 C before it's gone.
