Machine Overview

Specs:
24" x 16" x 18" travel
Linear way construction
1890 in/min (48M / min) rapid traverse
10,000 rpm, CAT 40 spindle
10 tools carousel type ATC
Siemens 828D PPU240.2 control, 8.4" LCD display
Small footprint
Specifications:
Work Capacity:
Travel X,Y,Z: 24" x 16" x 18.1" (610mm x 356mm x 460mm)
Spindle Nose to Table: 7.9 - 23.6" (200mm - 600mm)
Spindle Center to Column: 17" (432mm)
Work Table:
Table Area: 27.5" x 16.5" (700mm x 420mm)

Spindle:
Spindle Taper: CAT 40
Spindle Max. Speed: 10,000 rpm
Driving Type: Belt Drive
Motor (30m/cont.): 9.3/10.7 (7/8 kW)

Automatic Tool Changer (ATC):
Magazine Type: Carousel
Magazine Capacity: 10
Tool Selection Type: Set Tool Number
Max. Tool Diameter: 4.3" (110mm)
W/O Adj. Tool, Max. Dia: 6.7" (170mm)
Max Tool Length: 7.9" (200mm)
Max Tool Weight: 13.2lbs (6 Kg)
Air Blast at Tool Change: Standard
Motion:
Cutting Feed Rate: 0.04-393.7 ipm (1-10,000 mm/m)
Rapid Traverse: X/Y/Z - 1,890 ipm (48,000 mm/m)
Accuracy:
Positioning Accuracy: 0.00016/0.004 inch
Repeatability Accuracy: 0.00012/0.003 inch(mm)
CNC Control Features:
Controller: Siemens
Control Model: 828D-240.2
Programming Assist: "ShopMill-Conversational Type"
4th Axis Support: Optional
Screen Size: 8.4
Coolant System:
Flood Coolant Nozzles: 2
Coolant Tank Capacity: 42 Gal. (160 L)
Chip Pan: Standard

Power Requirement:
Electrical: 220V (w/ transformer) /3 Phase/ 20 KVA/60 Hz
Air: 6 CFM @ 88 psi
Machine Measurements:
Floor Space: 72.8" x 85" x 91.5"
Floor Space (w/ side mount) 78.2" x 85" x 91.5"
Door Opening: 25" (635M)
Weight: 7,260 lbs. (3,300)
Standard Equipment:
Siemens 828D-PPU241.2 control & drives with ; USB port, 2560m (1MB) memory, Embedded Ethernet, RS-232C interface, 50 blocks look ahead, 4 additional M codes, M30 Auto Power OFF
Siemens "ShopMill-ConversationalType Programming"
Full metal enclosure w/ 2 large side doors
Coolant system w/ enlarged coolant tank
Coolant Gun
Auto lubrication system
Rigid Tapping
Air Gun
Removable electronic hand wheel (MPG)
Door Interlock
Chip pan
Air Accumulator
Heat Exchanger for Electric Cabinet
Fluorescent work light
Optional Accessories: (Please call for pricing and additional information)
4th Axis kit prepped (electrics, cables unit)
4th Axis with rotary table (complete with drives, motor)
Flat Type Chip Conveyor
Oil skimmer
Coolant Through Spindle (CTS) prepped (rotary joint, hoses, cylinder electrics)
CTS 20 bar (300 psi) pump with tank
Tool Probe (Renishaw TS27R)
Tool Setter (Renishaw OMP40)

Description:

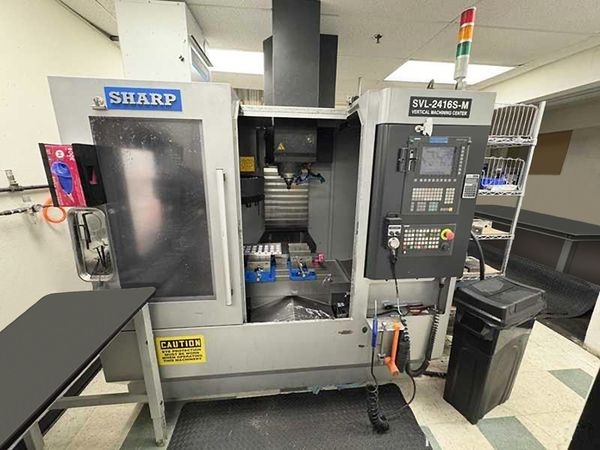

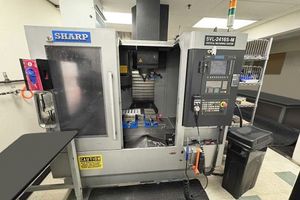

Pre-owned SHARP SVL2416SM 2017 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This SHARP Vertical Machining Center is available for a limited time. Get a quote today on this SVL2416SM before it's gone.
