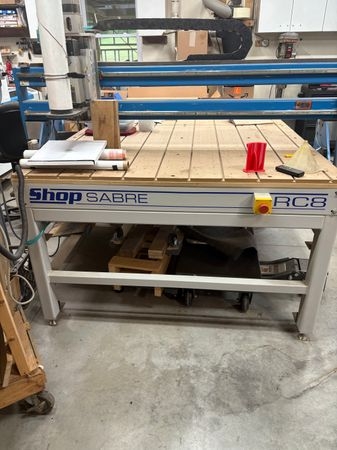

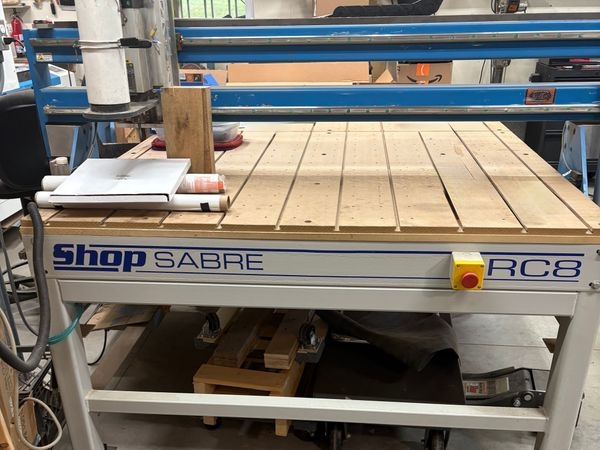

2014 SHOPSABRE RC8

ID:13344
Brand:SHOPSABRE
Model: RC8
Year:2014
Category:Router
Location:USA

Located In USA

Hello!

Machine Overview

Specs:

traversing speed: 1,500IPM
cutting speed: 500IPM
resolution: .005
cutting area: 52 x 98in
table construction: Welded Steel
gantry construction: Welded Steel
linear rails: 25mm Precision HiWin Rails
footprint: 63 x 111 x 70in
weight: 2,000Pounds
power requirements: 20amp / 110 Volt
Brand: ShopSabre
Model: RC8
Year: 2016
Phase: 3 PHASE
Voltage: 230 VOLT
Frame: Steel welded frame and Steel Tubular Gantry Line Switches X, Y, Z Axis
Motors: 1200 OZ. High definition precision stepper motors on X, Y, Z axis (Dual Y Axis)
Drive Technology: Oversized rack and pinion X and Dual Y Axis with ShopSabre floating drive technology
Ball Screw: High precision Ball screw in Z axis
Linear Guide Rails: Industrial 25mm Precision linear guide rails and bearings
Software: Vectric Vcarve Pro CAD/CAM software
Controller: ShopSabre WinCNC industrial controller
Table Top: MDF Table Top T-Slot installed every 8" on Center in Standard table top with clamp kit for RC8
Computer System: ShopSabre computer system - Full size desktop with 1TB of storage, 4GB memory, 19" Flat screen monitor
Spindle: 3KW 4HP HSD 18,000 MAX rpm spindle with VFD
Spindle Control: Manual Change Automated Software Control for spindle On/Off
Tool Measure Switch: Measures tooling height without changing Z height for fast tool change
Dust Skirt: Basic dust skirt with quick release feature
Dust Outlet: 4" outlet for connecting to dust collector

Options:

Spindle upgrade

Description:

Pre-owned SHOPSABRE RC8 2014 Router. This Router has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This SHOPSABRE Router is available for a limited time. Get a quote today on this RC8 before it's gone.
