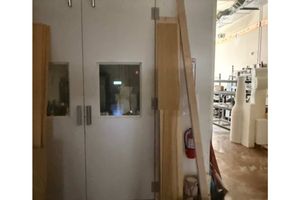

2019 SPRAY TECH JUNAIR SERIES PAINTBOOTH

Spray-Tech Paint Booth
Construction

Material: 18-gauge galvanized steel panels with reinforced structure

Finish: powder-coated steel

Doors: double-skin insulated doors with viewing windows

Main door opening: approx. 9 ft × 9 ft tri-fold

Airflow / Ventilation

Exhaust fan: 32-inch fan

Motor: 5 HP TEFC motor

Airflow capacity: ~12,600 CFM

Airflow design options:

Crossflow

Semi-downdraft

Side downdraft

Full downdraft

Reverse flow

Heating / Air Make-Up

Heater: 1.0 MBTU booth-mounted heater

Recirculation: up to 80% air recirculation

Filtration

Intake filters: 20? × 20? × 2?

Exhaust filters: 20? × 20? × 2?

Fully filtered airflow ceiling

Lighting

LED daylight-corrected light fixtures

Explosion-rated (Class 1, Div 2) for paint environments

Ducting

Standard 12-ft exhaust duct kit

Compliance

Designed to meet OSHA / NFPA safety standards

ETL electrical certification on many models

Size Options

Typical booth sizes (depending on configuration):

~29 ft long automotive booth
