Machine Overview

Specs:

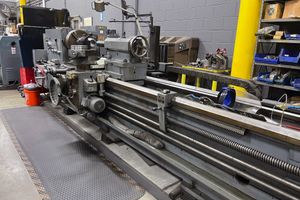

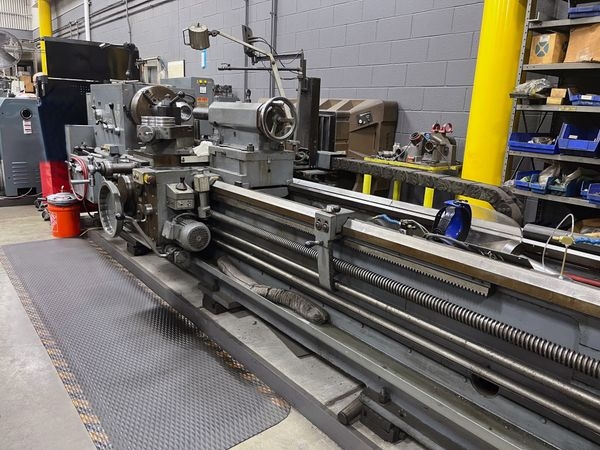

7" X 118" Stanko Heavy Duty Engine Lathe
Swing 27"
Swing Over Cross Slide 14.1"
Centers 118"
Spindle Bore 4"
RPM 1,250 RPM
Power 25 hp
Dimensions Long. 204" X 84" Wide X 65" High
Weight 12,584 Lbs.

Swing Over Bed Ways 27.56"
Swing Over Cross Slide 14.1"
Cross Slide Travel 15.75"
Swing In Gap 35.43" X 17.72" Long
Compound Travel 8.6"
Compound Swivel +/- 90 Degrees
Center Distance 118"
Weight Between Center 7,700 Lbs.
Spindle Hole 3-1/8"
Spindle Speeds 10 To 1,250 Rpm's
Spindle Nose DIN -11
Feeds Compound .0007 To .017
Feeds Cross Slide .001 To .20
Feeds Carriage .0024 To .055
Threads Inch 1/4 To 28 TPI
Threads Metric 1 To 224 MM
Tail Stock Quill Diameter 3-1/2"
Tail Stock Quill Travel 9.4"
Tail Stock Taper #6 Morse
Main Motor 20.4 Hp.
Floor Space 206" X 84"
Machine Height 62"
Weight 12,584 Lbs.
Coolant Pan Yes
Taper Attachment Yes
Thread Dial Yes
Rapid Traverse (6 Way) Yes
Power Feeding Compound Yes
Description:

This 2004 STANKO 16K40G-3 manual engine lathe offers a solid performance for your machining needs. It's been a cornerstone in many workshops due to its simple and straightforward functionality.

The lathe provides a swing over bed of 400mm, which makes it highly useful for various turning applications. Its spindle bore of 52mm allows it to handle a decent range of materials, giving users the flexibility they need for different projects. This model stands out for its no-fuss operation, making it accessible to both experienced machinists and those new to manual lathes.

This well-maintained machine comes with the necessary accessories to get you started right away. It includes a three-jaw chuck, which allows for easy securing of your workpieces. The lathe's sturdy build ensures that it can handle day-to-day work demands with ease.

One of the key features is the clearly marked controls, which are intuitive for adjusting speeds and feeds. This makes it easier to focus on the work at hand, reducing downtime and enhancing productivity. The lathe design also helps to keep operations smooth and consistent.

The lathe is fully operational and ready for your shop. Its robust design stands against wear and tear, allowing it to continue delivering high-quality results. This machine has been kept in good condition, ensuring that it performs at a high standard and can be quickly integrated into your workflow.

The 2004 STANKO 16K40G-3 is a straightforward manual engine lathe that could be a great addition to your machining tools. It bridges reliability and ease of use, providing you with a dependable option for a variety of turning tasks. If you're looking for a machine that will get the job done without complicated settings, this lathe is worth considering.
