Bar Capacity: 0.625"
Spindle Speed: 10,000 RPM
Spindle Motor: 5 HP
Rapid Rate Z Axis: 1,378 IPM
Turret Tools: 6 Station
Rapid Rate X Axis: 1,378 IPM
Max Turning Dia: 0.625"
Max Turning Length: 1.1875"
Number of tools: Front 4 tools Back: 2 tools ( Max 4 tools )
Max. drilling capacity: 25/64in
Sup Spindle Speed: 8,000RPM
Power Driven Attachment Speed: 7,500 RPM
Dimensions: 74" x 42" x 69"
Weight: 3,800 LBS

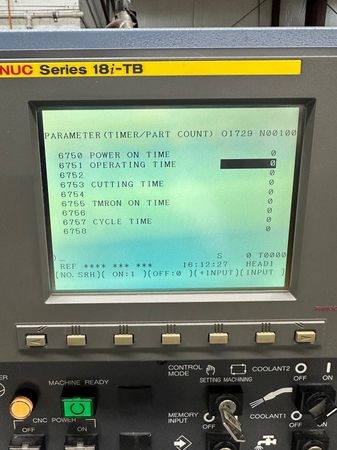

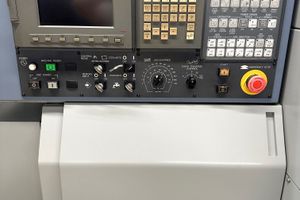

This 2007 STAR SB16 CNC Lathe is a great choice for any shop looking to increase their production capabilities. This lathe features a Fanuc CNC control, allowing for precise and accurate machining of parts. The machine also comes with several options and upgrades that can be added on to further enhance its performance. The first option available is the Chip Conveyor, which helps keep chips away from the cutting area while providing efficient chip removal. This allows for longer tool life and improved surface finish on parts being machined. Additionally, this machine can be upgraded with a Bar Feeder, Parts Catcher, Live Tooling, and Sub Spindle-- all of which help improve productivity by reducing setup time between jobs. For even more versatility in your machining operations, you can add 5-axis capability to this lathe as well. Overall, this 2007 STAR SB16 CNC Lathe offers an excellent combination of precision and flexibility at an affordable price point – making it ideal for shops looking to expand their production capabilities without breaking the bank. With its wide range of options and upgrades available, you’ll have no trouble finding the perfect configuration for your needs!
Spindle Speed: 10,000 RPM
Spindle Motor: 5 HP
Rapid Rate Z Axis: 1,378 IPM
Turret Tools: 6 Station
Rapid Rate X Axis: 1,378 IPM
Max Turning Dia: 0.625"
Max Turning Length: 1.1875"
Number of tools: Front 4 tools Back: 2 tools ( Max 4 tools )
Max. drilling capacity: 25/64in
Sup Spindle Speed: 8,000RPM
Power Driven Attachment Speed: 7,500 RPM
Dimensions: 74" x 42" x 69"
Weight: 3,800 LBS
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
