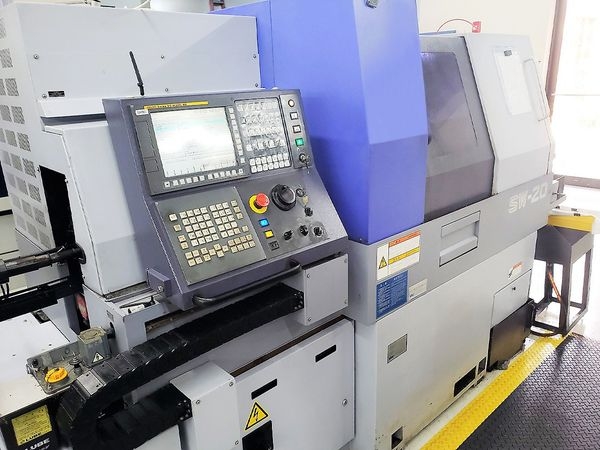

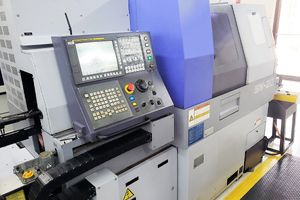

2013 STAR SW20

Bar Capacity: 0.787"
Spindle Speed: 10,000 RPM
NUMBER OF AXES 11
MAIN SPINDLE (HEADSTOCK) Z1 / C1 AXIS
TOOL POST X1 / Y1 / X3 / Y3 / Z3 AXIS
MAX. MACHINING DIAMETER 20 MM / 22.2 MM (OPTION)
HEADSTOCK STROKE 205 MM
MAIN SPINDLE POWER 3.7 KW
MAIN SPINDLE SPEED 10,000 RPM
MAIN SPINDLE TOOLING
TURNING TOOL 6 TOOLS @ 12 MM SQ
DRILLING ARM SLEEVE HOLDER CAPACITY 4 X Ø 22 MM SLEEVES (ER16)
POWER DRIVEN TOOL (PDT) POSITIONS 1 + 5 MODULAR STATIONS
MAX (PDT) SPEED 8,000 RPM
SUB SPINDLE X2 / Z2 / C2 AXIS
MAX. CHUCKING DIAMETER 20 MM / 22.2 MM (OPTION)
SUB SPINDLE POWER 3.7 KW
SUB SPINDLE SPEED 10,000 RPM
SUB SPINDLE TOOLING
BACK-WORKING PLATEN POSITIONS 8
MAX DRILL SLEEVE CAPACITY ER16
POWER DRIVEN TOOL (PDT) POSITIONS 6 (ER16)
MAX (PDT) SPEED 8,000 RPM
Weight: 7,500 LBS

Fanuc 31i-MODEL B5
Live Tooling
Sub Spindle
Y Axis
Chip Auger
8 Live Tools, path 1 and path 3
6 Standard Tools
2000 PSI
Helical Interpolation Set-Up
