Machine Overview

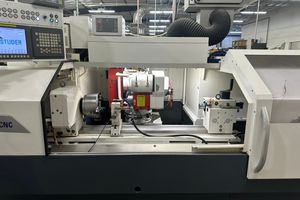

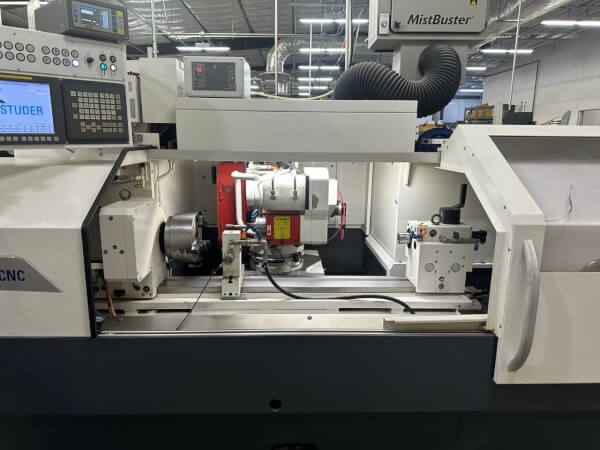

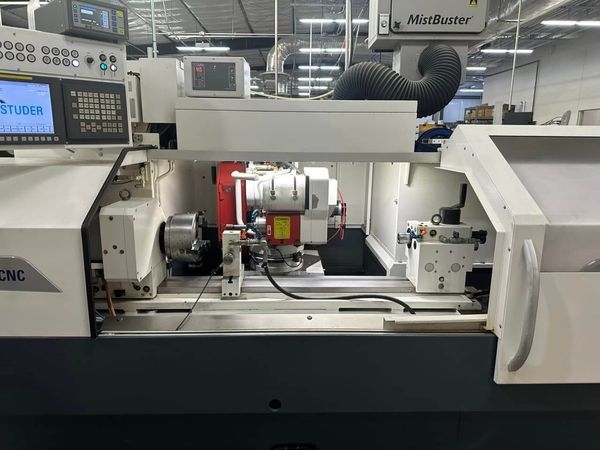

This 2017 STUDER FAVORIT is a high-quality, pre-owned grinding machine that will be an excellent addition to any machine shop.
The machine features an X-Axis Travel of 11.2 inches, with a maximum travel speed of 394 inches per minute and a Z-Axis Travel of 31.5 inches with a maximum travel speed of 787 inches per minute. The swiveling range for the axes includes 210 degrees for the B-axis. It boasts a Max Spindle Power of 12 horsepower, reaching up to 2,810 revolutions per minute.
Designed to handle substantial workloads, this grinder can accommodate a maximum Grinding Wheel Diameter of 20 inches and a Max Wheel Width of 3.15 inches. Workpieces can be up to 26.8 inches in length and 13.75 inches in diameter, supporting a maximum weight of 176 pounds. It offers a 25.6-inch Distance Between Centers with a Center Height of 6.9 inches. The Tailstock has a MT4 taper, a travel of barrel of 1.38 inches, and a diameter of barrel of 1.97 inches.
The machine requires approximately 12,000 pounds of space and has placement dimensions of 12 feet by 5 feet by 9 feet. For transport, dimensions are 18 feet by 5 feet by 9 feet, and the associated accessories need an 8 feet by 8 feet by 8 feet space.
The equipment comes equipped with Fanuc Series 0i-TD Control, Mist Buster, a Norton O.D. Wheel, two new wheel holders, various I.D. grinding wheels, and miscellaneous consumables. These features make this unit a solid choice for any precision grinding projects your shop may tackle.
If you have been seeking a reliable solution to boost your grinding capabilities, this STUDER FAVORIT offers top-notch technology suitable for various grinding tasks, ensuring your operational needs are met efficiently.
