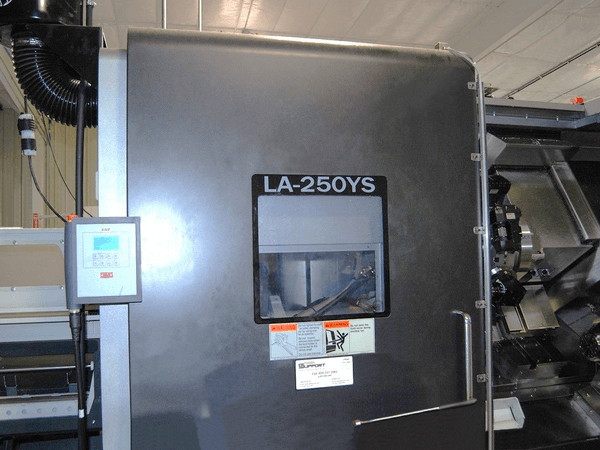

Used TAKISAWA LA250SY CNC Lathe
Pre-owned TAKISAWA LA250SY 2019 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This TAKISAWA CNC Lathe is available for a limited time. Get a quote today on this LA250SY before it's gone.
Specs:
Bar Capacity: 2.95"
Chuck Size: 10"
Spindle Speed: 3,500 RPM
Spindle Motor: 30 HP
X Axis Travel: 10.63"
Z Axis Travel: 31.5"
Rapid Rate Z Axis: 787 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 787 IPM
Max Turning Dia: 14.56"
Max Turning Length: 29"
Max Swing: 23.62"
Y Axis Travel +/- 2.55"
Milling 10HP
SUB SPINDLE:
Sub Spindle Speed 3,500 RPM
Sub Spindle Motor 15 HP
B Axis Travel 28.9"
Dimensions: 140" x 88.6" x 77.4"
Weight: 17,700 LBS
Chuck Size: 10"
Spindle Speed: 3,500 RPM
Spindle Motor: 30 HP
X Axis Travel: 10.63"
Z Axis Travel: 31.5"
Rapid Rate Z Axis: 787 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 787 IPM
Max Turning Dia: 14.56"
Max Turning Length: 29"
Max Swing: 23.62"
Y Axis Travel +/- 2.55"
Milling 10HP
SUB SPINDLE:
Sub Spindle Speed 3,500 RPM
Sub Spindle Motor 15 HP
B Axis Travel 28.9"
Dimensions: 140" x 88.6" x 77.4"
Weight: 17,700 LBS
Options:
Fanuc
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
Price:
Call For Price
Owner:
Todd (Located in USA)
