Seller Needs:
$4,500|
879
|
10

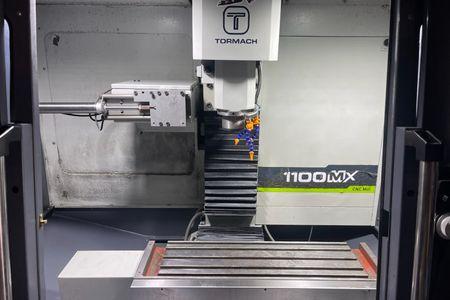

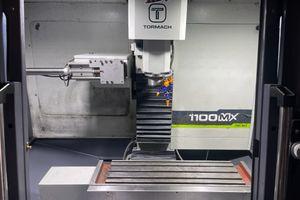

This 2009 Tormach 1100M Vertical Machining Center is a CNC-controlled product with a Path Pilot Computer. The machine has seen many years of use and has been a part of several significant projects. Over the years, it has rema...Read More
Seller Needs:
Payment:
Specs:
Tormach PNC 1100 -
Spindle replaced in 2016 has around 3000 hrs on it.
Replaced motors in 2021 with a Series 3 Upgrade (originally Series 2).
Y-axis bellows upgrade kit installed in 2021.
Probe shows factory tolerances.
Cosmetic paint wear due to coolant spray but the unit is not rusting.
X Axis Travel: 11"
Y Axis Travel: 18"
Z Axis Travel: 16.25"
Rapid Rate X Axis: 110 IPM
Rapid Rate Y Axis: 110 IPM
Rapid Rate Z Axis: 90 IPM
Table Size:
Max Table Load: LBS
Spindle Motor: 2 HP
Spindle Speed: 7,500 RPM
Spindle Taper: R8
Tool Changer: ATC
Primary Power Required: Single-Phase 230 Vac, 50/60Hz, 20A breaker
Table Slots: 5/8 in. - Three slots (15.9 mm - Three slots)
Spindle Nose to Table Max. Clearance: 18 in. (457 mm)
Spindle Centerline to Machine Column: 11 in. (279 mm)
Typical System Footprint: 69 in. × 56.5 in. (1753 mm x 1435 mm)
Overall System Height: 96 in. (2438 mm)
Typical System Weight: 1600 lb (726 kg)
Maximum Weight on Table: 500 lbs. (227 kg)
Dimensions:
Weight: LBS 1700 lbs gross with stand.
Spindle replaced in 2016 has around 3000 hrs on it.
Replaced motors in 2021 with a Series 3 Upgrade (originally Series 2).
Y-axis bellows upgrade kit installed in 2021.
Probe shows factory tolerances.
Cosmetic paint wear due to coolant spray but the unit is not rusting.
X Axis Travel: 11"
Y Axis Travel: 18"
Z Axis Travel: 16.25"
Rapid Rate X Axis: 110 IPM
Rapid Rate Y Axis: 110 IPM
Rapid Rate Z Axis: 90 IPM
Table Size:
Max Table Load: LBS
Spindle Motor: 2 HP
Spindle Speed: 7,500 RPM
Spindle Taper: R8
Tool Changer: ATC
Primary Power Required: Single-Phase 230 Vac, 50/60Hz, 20A breaker
Table Slots: 5/8 in. - Three slots (15.9 mm - Three slots)
Spindle Nose to Table Max. Clearance: 18 in. (457 mm)
Spindle Centerline to Machine Column: 11 in. (279 mm)
Typical System Footprint: 69 in. × 56.5 in. (1753 mm x 1435 mm)
Overall System Height: 96 in. (2438 mm)
Typical System Weight: 1600 lb (726 kg)
Maximum Weight on Table: 500 lbs. (227 kg)
Dimensions:
Weight: LBS 1700 lbs gross with stand.
Options:
Path Pilot Computer
Programmable Coolant
Programmable Coolant
Seller:
EricB626
Location:
USA
