Seller Needs:
$209,500|
2136
|
0

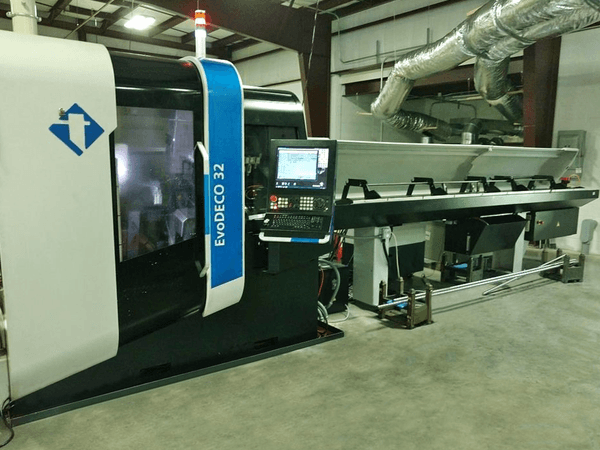

Pre-owned TORNOS EVODECO32 2014 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Fanuc control. This CNC Machine is currently located in USA. This TORNOS CNC Lathe is available for a limited time. Get...Read More
Seller Needs:
Payment:
Specs:
Max. Length 2289 mm
Max. Width 2070 mm
Max. Height 2580 mm
Weight Approx. 3800 kg
Cutting Oil Tray Capacity 220 L
Coolant Pump Power 1.1 kW
Max. Pressure 5 bar
Coolant Pump Flow Rate 43 l/min
Main Spindle (Z11/S11/C11)
Max. Bar Capacity 32 mm
Standard Workpiece Length with Guide Bush 260 mm
Spindle Rotation Speed 0 to 8,000 rpm
Spindle Power 9.5 (12.5) kW
Max. Constant Torque 19.6 (28.8) Nm
Stoppage time (10,000 rpm to 0) 0.8 sec
Mild Steel Drilling Capacity 14 mm
Mild Steel Tapping Capacity M12
Max. Width 2070 mm
Max. Height 2580 mm
Weight Approx. 3800 kg
Cutting Oil Tray Capacity 220 L
Coolant Pump Power 1.1 kW
Max. Pressure 5 bar
Coolant Pump Flow Rate 43 l/min
Main Spindle (Z11/S11/C11)
Max. Bar Capacity 32 mm
Standard Workpiece Length with Guide Bush 260 mm
Spindle Rotation Speed 0 to 8,000 rpm
Spindle Power 9.5 (12.5) kW
Max. Constant Torque 19.6 (28.8) Nm
Stoppage time (10,000 rpm to 0) 0.8 sec
Mild Steel Drilling Capacity 14 mm
Mild Steel Tapping Capacity M12
Options:
Fanuc
Chip Conveyor
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Chip Conveyor
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Seller:
DaveH424
Location:
CT
