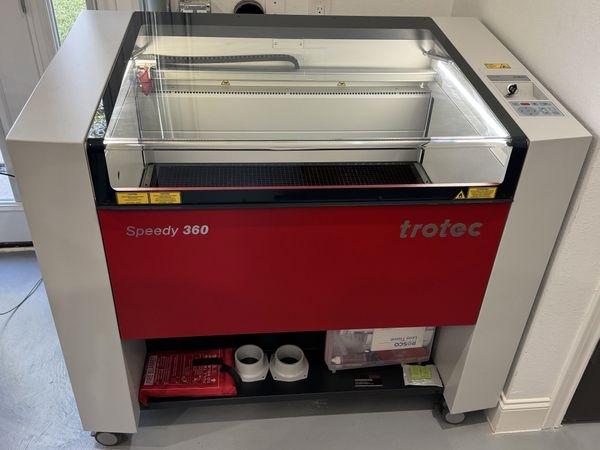

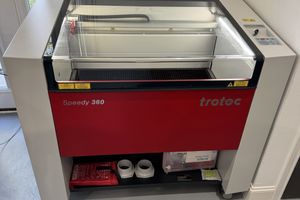

Trotec Speedy 360 80w laser engraver with accessories, blower motor, and laptop computer for machine control using Ruby Software. Very well maintained.
Sonar AutoFocus
Laser pointer
Air Assist Pump – Integrated and computer controlled
2.0-inch precision lens
Multi-functional table with Standard Engraving Table
Black Aluminum Grid Table
Vacuum Table
Rotary Attachment
1.5HP Dust Collector Motor Blower
Trotec Tools, Lens Cleaner, Lens Cleaner Paper
User Manuals, Power/Data Cables, Power Cord, Software USB Drive
Ruby Software Package
HP EliteBook 8570p Laptop to run Ruby Software Package
• Device Name: HP EliteBook 8570p
• Processor: Intel(R) Core(TM) i5-3230M CPU @ 2.60GHz 2.60 GHz
• Installed RAM: 8.00 GB (7.87 GB usable)
• Graphics Card: Intel(R) HD Graphics 4000 (32 MB)
• Storage: 238 GB SSD SAMSUNG SSD SM841 2,5" 7mm 256GB
• System Type: 64-bit operating system, x64-based processor
• Pen and touch: No pen or touch input is available for this display
• Operating System: Windows 10 Pro - Version 22H2 - OS
Manufactured: March 2022
Trotec Speedy 360 Features
Engraving Area 32” x 20”
Workpiece Height 8.3”
Maximum Raster Speed 140”/sec
Positional Accuracy 5?m/per inch of travel
Repeatability +/- 0.0006“
Laser Source 80 Watts
Standard Focal Length Lens 2.0”
Max. Part Height 11” (Based on Configuration)
In-Pack Technology Standard
Gantry Motor Type (with encoder) Brushless Servo Motors
Auto Focus Standard
Red Dot Pointer Standard
Air Assist Plumbing Standard
Harsh Environment Kit Included
Print Software Ruby 2.2 or better
Fully enclosed chassis with double safety interlock system laser
safety class 2, CE compliant maintenance-free
Manufactured: March 2022
1.5HP DC3 Portable Dust Collector Motor Blower
DC3 Collector style - Motor Blower Only - no bag or hose.
It uses a compact but powerful 1-1/2HP motor to move air to over 850 CFM.
Specification Description
Style: Motor Blower
Portability: Portable
Nominal Voltage: 110/220
Phases: 1
Sound Rating db: 62db
Max Static Pressure (inches): 8.5
Max Airflow through collector (CFM): 850
Running Amps: 16 @ 110V
Horsepower: 1.5
Main Inlet Size (inches): 4
Impeller Size (inches): 9
Impeller Material: Steel
Dimensions: 48.1” (width) x 32.7” (depth) x 41.5” (height)
Weight: 540 lbs
