Seller Needs:
$168,000|
566
|
1

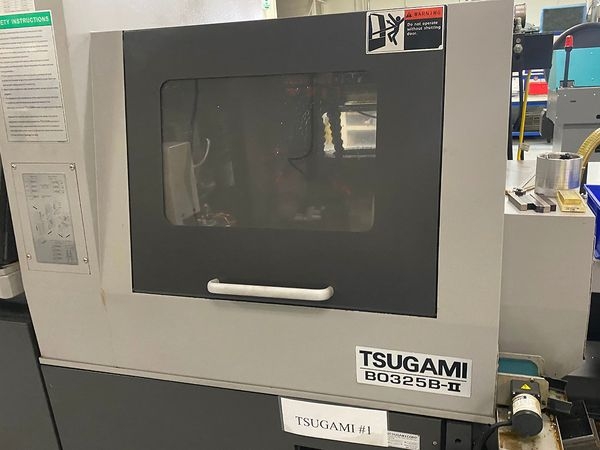

Pre-owned TSUGAMI B0325B-II 2018 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Fanuc 32iB control. This CNC Machine is currently located in California. This TSUGAMI CNC Lathe is available for a lim...Read More
Seller Needs:
Payment:
Specs:
Max. Chucking Barstock Diameter: ø32 mm / 1.26"
Max. Machining Length:
320 mm / 12.6" (Direct Drive Guide Bushing)
70 mm / 2.76" (Guide Bushless)
Max. Drilling Diameter: 10 mm / 0.39"
Max. Tapping Diameter: M10
Max. Back Spindle Chucking Barstock Dia: 32mm / 1.26"
Max. Back Spindle Drilling Diameter: 10 mm / 0.39"
Max. Back Spindle Tapping Diameter: M8
Max. Tool Spindle Drilling Diameter:10 mm / 0.39"
Max. Tool Spindle Tapping Diameter M8
Max. Tool Spindle Slotting Cutter Dia: 45 mm / 1.77"
Main Spindle Speed: 200 to 8,000 min-1
Back Spindle Speed: 200 to 10,000 min-1
Tool Spindle Speed: 200 to 6,000 min-1
Total Tool Number: (Standard Spec.) 31
Tool Size: 0.625" x 3.94" (square) / 25 mm (round)
Rapid Traverse Rate: 32 m/min (105 ft/min)
[(X1, Y1, Y2: 24 m/min (78.74 ft/min)]
Spindle Index: C1 and C2 Axis
Main Spindle: 3.7/5.5 kW
Back Spindle: 2.2/3.7 kW
Cross Drill of Front Tool Post: 1.0 kW
Cross Drill of Rear Tool Post Drive: 1.0 kW (Option)
Rotary Tool of Back Tool Post: 1.0 kW (B0325B-II Option)
Rotary Guide Bushing: 1.5 kW
Z1, Y1, X2, Z2: .75 kW
X1, Y2: .5 kW
Coolant Pump: .4 kW
Lubricating Pump: 3 W
EQUIPPED WITH:
Fanuc 32 iB CNC Control
Rotary Tool Beside Sub Spindle Option
Work Conveyor
Thru Sub Spindle Coolant
2000 PSI Hi Pressure Coolant
EDGE Patriot 338 Bar Feed
LNS MH500 Chip Conveyor
Filtermist
HEPA Filter
Polygon Turning
Polygon Turning 2 Spindles
Polar Interpolation
New Price Today $259,020 USD
Dimensions: 84.65" L x 50.39" W x 75.98" H
Weight: 7,716 Lbs
Max. Machining Length:
320 mm / 12.6" (Direct Drive Guide Bushing)
70 mm / 2.76" (Guide Bushless)
Max. Drilling Diameter: 10 mm / 0.39"
Max. Tapping Diameter: M10
Max. Back Spindle Chucking Barstock Dia: 32mm / 1.26"
Max. Back Spindle Drilling Diameter: 10 mm / 0.39"
Max. Back Spindle Tapping Diameter: M8
Max. Tool Spindle Drilling Diameter:10 mm / 0.39"
Max. Tool Spindle Tapping Diameter M8
Max. Tool Spindle Slotting Cutter Dia: 45 mm / 1.77"
Main Spindle Speed: 200 to 8,000 min-1
Back Spindle Speed: 200 to 10,000 min-1
Tool Spindle Speed: 200 to 6,000 min-1
Total Tool Number: (Standard Spec.) 31
Tool Size: 0.625" x 3.94" (square) / 25 mm (round)
Rapid Traverse Rate: 32 m/min (105 ft/min)
[(X1, Y1, Y2: 24 m/min (78.74 ft/min)]
Spindle Index: C1 and C2 Axis
Main Spindle: 3.7/5.5 kW
Back Spindle: 2.2/3.7 kW
Cross Drill of Front Tool Post: 1.0 kW
Cross Drill of Rear Tool Post Drive: 1.0 kW (Option)
Rotary Tool of Back Tool Post: 1.0 kW (B0325B-II Option)
Rotary Guide Bushing: 1.5 kW
Z1, Y1, X2, Z2: .75 kW
X1, Y2: .5 kW
Coolant Pump: .4 kW
Lubricating Pump: 3 W
EQUIPPED WITH:
Fanuc 32 iB CNC Control
Rotary Tool Beside Sub Spindle Option
Work Conveyor
Thru Sub Spindle Coolant
2000 PSI Hi Pressure Coolant
EDGE Patriot 338 Bar Feed
LNS MH500 Chip Conveyor
Filtermist
HEPA Filter
Polygon Turning
Polygon Turning 2 Spindles
Polar Interpolation
New Price Today $259,020 USD
Dimensions: 84.65" L x 50.39" W x 75.98" H
Weight: 7,716 Lbs
Options:
Fanuc 32iB
Chip Conveyor
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Chip Conveyor
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Seller:
BranP761
Location:
CA
