Machine Overview

Specs:
CONTROL Fanuc 31i-b
Number of Axes 8
Names of Axes X1, X2, X3, Z1, Z2, Z3, Y2, Y3
Working Bar stock Diameter: 38mm
Maximum Machining Length 250mm
Maximum Drilling Diameter 16mm
Back Spindle - turret Maximum tapping Size M14
Maximum Chucking Diameter 38mm
Front tool post Max Tapping Size M12
Maximum Crossing Drilling Diameter 10mm
Turret Maximum Crossing Tapping size M6
Maximum Rotary Tool Drilling Diameter 16mm
Back Tool Post Max Rotary Tooling Tapping Size M10
Max Rotary Tooling Drilling Diameter 8mm
Max rotary tool tapping size M6
Max fixed tool drilling diameter 10mm
Max fixed tool tapping size M10
Main Spindle Speed 200 - 5000 min
Back spindle speed 200 - 7000 min
Cross drill speed on front tool post 200 - 5,000 min (optional)
Rotary tool speed on turret 200 - 8,000 min
Dimensions 3427 x 1875 x 1840
Weight 13640 pounds
Control: Fanuc 31i-B12' Patriot 338 Magazine Bar FeedPart ConveyorHi Pressure CoolantMist CollectorManualsPower on time 15,000 hrs. Cutting time 1,896 hrs
Options:
FANUC 31i-B
Bar Feeder
Parts Catcher
Live Tooling
Y Axis
5 Axis
12' Patriot 338 Magazine Bar Feed
Hi Pressure Coolant
Mist Collector
Description:

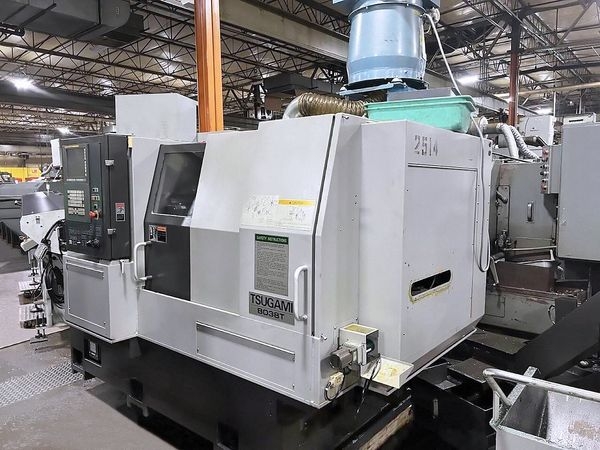

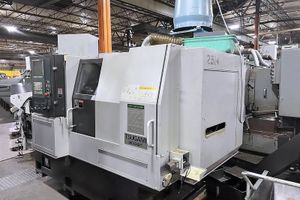

This 2016 TSUGAMI B038T is up for sale. A high-quality machine featuring an 8-axes system labeled as X1, X2, X3, Z1, Z2, Z3, Y2, Y3. Designed for bar stock processing, this machine confidently handles material up to 38mm in diameter. It offers a maximum machining length of 250mm. The maximum drilling diameter achievable with this machine is 16mm.

The ergonomically designed back spindle turret can tap with a size up to M14, while also having a maximum chucking capability of 38mm. Meanwhile, the front tool post has maximum tapping capabilities of an M12 size. The maximum crossing drilling diameter is 10mm for both the front tool post and the turret. While the turret can tap sizes to a maximum of M6, the back tool post has a maximum rotary tooling tapping size of M10.

Main spindle speed ranges from 200 to 5000 per minute, while the back spindle operates at speeds between 200 to 7000 per minute. For the front tool post's cross drill, the standard speed is at 200 - 5,000 per minute. The turret's rotary tool operates at a speed of 200 - 8,000 per minute.

The machine itself has a strong build, possessing dimensions of 3427 x 1875 x 1840 and a weight of 13640 pounds. It operates with a Fanuc 31i-B12' control and comes along with a Patriot 338 Magazine Bar Feed, Part Conveyor, Hi-Pressure Coolant, Mist Collector, and manuals. Note that the machine's power on time stands at 15,000 hours with a cutting time of 1,896 hours emphasising our machine's durability and longevity.
