Machine Overview

Specs:

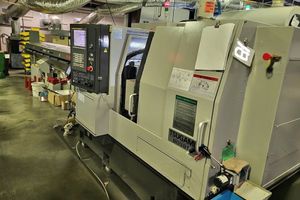

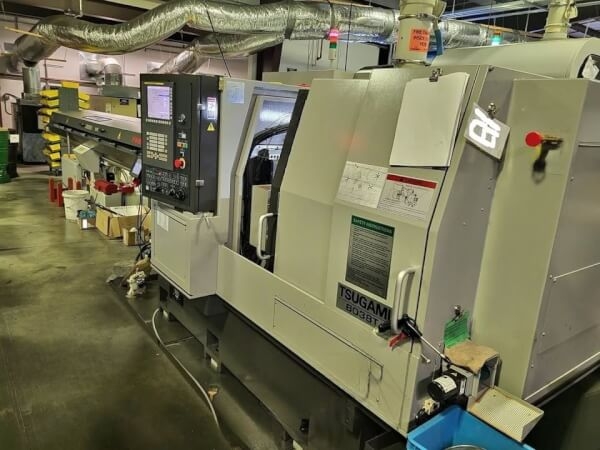

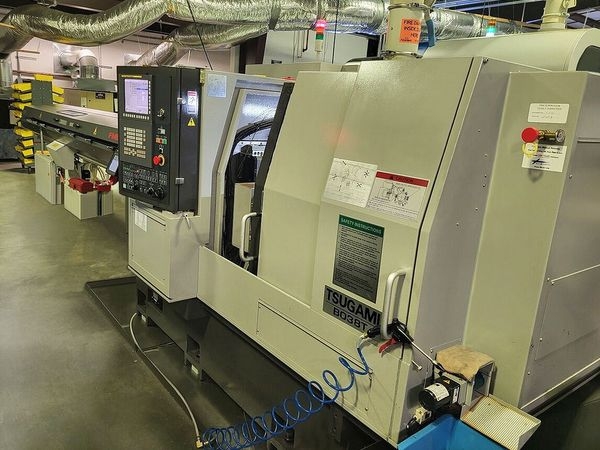

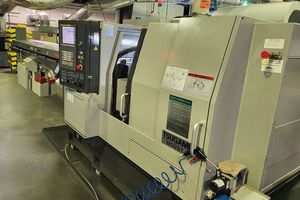

Tsugami B038T Swiss Type CNC Lathe
New 2021
Only 3600 Hours Power on Time
Fanuc 31i-B
Bar Feed
High pressure Coolant system w. 8 outputs for oil: 2,000 PSI
Main Spindle: 15 HP
Sub Spindle: 7.5 HP
Live Tool (Turret: 1.87 HP
Tool Spindle on back tool post: 1.34 HP
Cross drill on front tool post: 1.34 HP
Powerful Sub Spindle: 7,000 RPM
Sub spindle max. machining diameter: 1.5"
Max. Sub spindle drilling diameter: 0.55"
Max. Sub spindle tapping size: M12
8 Station 3 axis turret (Live Capable)
Live tool spindle speed on Turret: 7,7990 RPM
Live tool turret drilling diameter: 16mm
Live tool turret tapping size: M10
1.5" max. machining diameter
Max. headstock stroke: 9.84"
Main spindle speed: 5,000 RPM
Max. main spindle drilling diameter: 0.625"
Main spindle tapping size: M14
Front tool post: 5 turning, 2 Live
Front tool post cross drill speed: 5,000 RPM
Front tool post cross drilling diameter: 10mm
Front tool post cross tapping size: M6
Back tool post: 6 (3 fixed, 3 live)
Back tool post live tool speed: 6,000 RPM
Description:

This TSUGAMI B038T is a pre-owned CNC Swiss-type automatic lathe known for its high production capability. Designed to handle complex parts, it caters to various machining needs including turning, milling, and drilling.

The machine features a 38mm bar capacity, which makes it suitable for producing medium to large parts with ease. With its user-friendly control system, operators find it straightforward to set up and manage different operations even in a dynamic production environment.

Built to deliver precision, it ensures that each piece meets required specifications while minimizing waste. The programming flexibility allows customization for specific projects, enabling adaptation to changing manufacturing demands.

Though this unit has been used, it remains in sound working condition, having been maintained according to industry standards. All essential functions and components are operational, making it an ideal choice for businesses looking to add capability at a reasonable cost.

This TSUGAMI B038T is accompanied by necessary accessories to get you started, allowing seamless integration into your existing workshop setup. By choosing this machine, you invest in a product that supports productivity while optimizing your processes.
