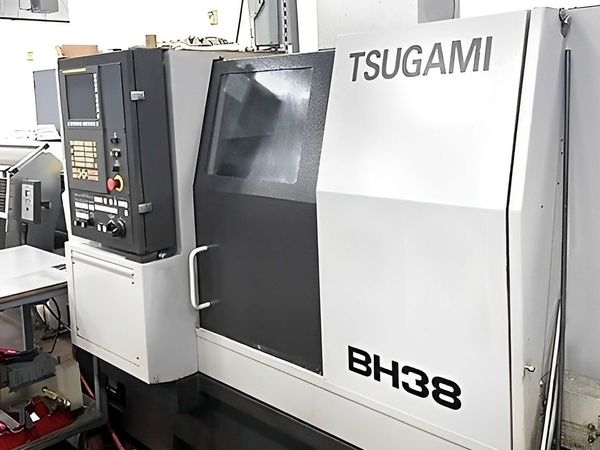

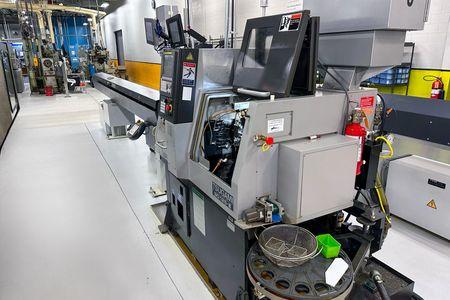

Used TSUGAMI BH38SY CNC Lathe
This 2010 TSUGAMI BH38SY CNC Lathe is a great choice for any shop looking for a CNC swiss machine. This lathe has been well-maintained. It has an LNS Sprint 552-565 Magazine Bar Loader, different channel sets (14, 26, 33 & 39mm), LNS Turbo Chip Conveyor, MP Systems, V2 Swiss, High-Pressure Coolant System, Part Catcher/Part Conveyor, MISC Collets & Guide Bushings, and a Tri-Mist Mist Collector 850. It also comes with a variety of tooling, including (3) Powered Cross Drill, (1) Double-ended 2-Pos Powered Face Drill; (2) Double-ended 1-Pos Powered Face Drill, (2) Double ID tool blocks, (2) Single ID tool blocks, (2) Double-turning holder, and (3) Front Holder. This machine has a total of 22,049 hours of use. With its low hours and great condition, this machine is sure to provide years of reliable service.
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
Max Turning Dia: 1.496"
Max Turning Length: 9.842"
Collet Type/Capacity: 1.625
Sub-Spindle: (Standard): 5000 RPM
Sub spindle Motor: 7.30 HP
12-Station Turret
Max Tools: 12 WITH 4 Rotary
Tool Shank Size (in.): Square: 0.750 Rotary: 0.393
Rotary Tool Spindle: 8,000 RPM
Rotary motor: 1.90 HP
Front Post
Max Tools 4 Turning plus 2 Rotary
Tool Shank Size (inch):
Square: 0.625 Rotary: 0.310
Rotary Tool Spindle: 8000 RPM
Rotary Tool Power: 1.30 hp
Dimensions: 107" x 71" x 67"
Weight: 13,000 LBS
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
