Seller Needs:
$52,000|
40
|
0

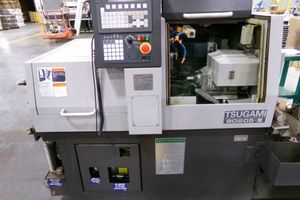

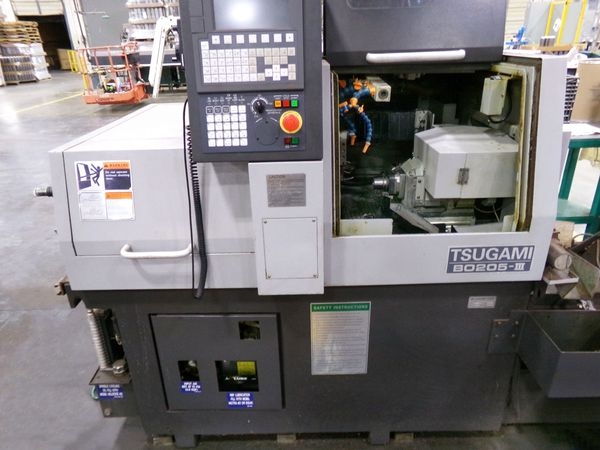

Pre-owned TSUGAMI BO205 III 2015 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Fanuc Oi-TD control. This CNC Machine is currently located in Alabama. This TSUGAMI CNC Lathe is available for a limit...Read More
Seller Needs:
Payment:
Specs:
Bar Capacity: 0.79"
Spindle Speed: 12,000 RPM
Rapid Rate Z Axis: 944 IPM
Turret Tools: 21 Station
Rapid Rate X Axis: 944 IPM
Max Turning Dia: 0.79"
Max Turning Length: 8.3"
Dimensions: 65.16" x 44.29" x 66.93"
Weight: 4,409 LBS
Max Turning Diameter: 0.79? (20 mm)
Max Turning Length: 8.3? (210 mm)
Max Turning Length with Gripping Unit: 6.69? (170mm)
Max Bar Capacity: 0.79? (20 mm)
Max Tool Positions: 21
Max. Main Spindle Drilling Diameter: 0.39? (10 mm)
Max. Main Spindle Tapping Diameter: M10
Max. Back Spindle Chucking Diameter: 0.79? (20 mm)
Max. Back Spindle Drilling Diameter: 0.31? (8 mm)
Max. Back Spindle Tapping Diameter: M8
Max. Cross Drilling Diameter: 0.275 ( 7 mm)/ER11 and 0.393? (10 mm)/ER16
Max. Cross Tapping Diameter: M5 x 0.8 (option)
Max. Tool Spindle Slotting Cutter Diameter: 1.18? (30 mm)
Max. Back Drilling Diameter: 0.275? (7 mm)
Max. Back Tapping Diameter: M5
Spindle Speed: 12,000 RPM
Rapid Rate Z Axis: 944 IPM
Turret Tools: 21 Station
Rapid Rate X Axis: 944 IPM
Max Turning Dia: 0.79"
Max Turning Length: 8.3"
Dimensions: 65.16" x 44.29" x 66.93"
Weight: 4,409 LBS
Max Turning Diameter: 0.79? (20 mm)
Max Turning Length: 8.3? (210 mm)
Max Turning Length with Gripping Unit: 6.69? (170mm)
Max Bar Capacity: 0.79? (20 mm)
Max Tool Positions: 21
Max. Main Spindle Drilling Diameter: 0.39? (10 mm)
Max. Main Spindle Tapping Diameter: M10
Max. Back Spindle Chucking Diameter: 0.79? (20 mm)
Max. Back Spindle Drilling Diameter: 0.31? (8 mm)
Max. Back Spindle Tapping Diameter: M8
Max. Cross Drilling Diameter: 0.275 ( 7 mm)/ER11 and 0.393? (10 mm)/ER16
Max. Cross Tapping Diameter: M5 x 0.8 (option)
Max. Tool Spindle Slotting Cutter Diameter: 1.18? (30 mm)
Max. Back Drilling Diameter: 0.275? (7 mm)
Max. Back Tapping Diameter: M5
Options:
Fanuc Oi-TD
Chip Conveyor
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Inspection Report in Pics
Chip Conveyor
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Inspection Report in Pics
Seller:
MarkB602
Location:
AL
