Seller Needs:
$186,000|
1021
|
1

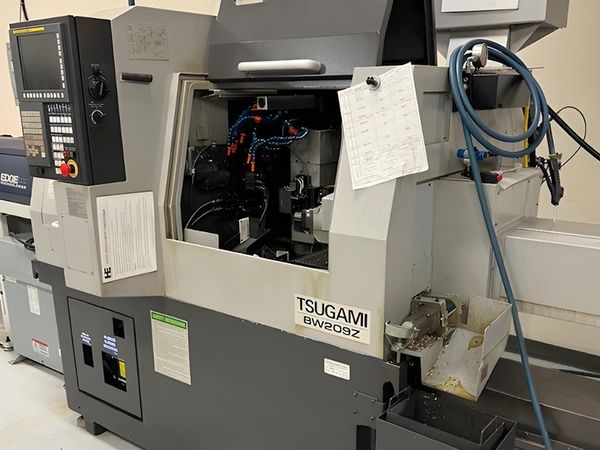

Pre-owned TSUGAMI BW209Z 2018 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Fanuc 32iB control. This CNC Machine is currently located in Nevada. This TSUGAMI CNC Lathe is available for a limited ti...Read More
Seller Needs:
Payment:
Specs:
Maximum Bar Stock: 20 mm / 0.79?
Number of Axes: 9
Sliding Headstock / Guide Bushing: YES
CONVERTIBLE: Run w/o Guide Bushing (chucker) YES
Max Headstock Stroke w/ Guide Bushing:
170 mm / 6.69?
Max Headstock Stroke w/o Guide Bushing
45 mm / 1.77?
Number Tool Positions: (std / max): 28/30
Number Live Tool Positions (std / max): 9/11
Main Spindle Speed: 200 – 10,000 rpm
Sub Spindle Speed: 200 – 12,000 rpm
Main Spindle Motor: 2.2 / 3.7 kW
EQUIPPED WITH:
Fanuc 31i-B CNC Control
EDGE Minuteman 320SE Bar Feed
Work Conveyor, Rear Work Ejection
Thru Sub Spindle Coolant
V2 H08 2000 PSI High Pressure Coolant
LNS MH500 Chip Conveyor
Tri-Mist 850 G2 Filtermist System
HEPA Filter
IMG Gun Drill Block
Weight: 6,393 lbs
Footprint: 79.1” L x 59.3” W x 68.9”4
Number of Axes: 9
Sliding Headstock / Guide Bushing: YES
CONVERTIBLE: Run w/o Guide Bushing (chucker) YES
Max Headstock Stroke w/ Guide Bushing:
170 mm / 6.69?
Max Headstock Stroke w/o Guide Bushing
45 mm / 1.77?
Number Tool Positions: (std / max): 28/30
Number Live Tool Positions (std / max): 9/11
Main Spindle Speed: 200 – 10,000 rpm
Sub Spindle Speed: 200 – 12,000 rpm
Main Spindle Motor: 2.2 / 3.7 kW
EQUIPPED WITH:
Fanuc 31i-B CNC Control
EDGE Minuteman 320SE Bar Feed
Work Conveyor, Rear Work Ejection
Thru Sub Spindle Coolant
V2 H08 2000 PSI High Pressure Coolant
LNS MH500 Chip Conveyor
Tri-Mist 850 G2 Filtermist System
HEPA Filter
IMG Gun Drill Block
Weight: 6,393 lbs
Footprint: 79.1” L x 59.3” W x 68.9”4
Options:
Fanuc 32iB
Chip Conveyor
Bar Feeder
Live Tooling
Sub Spindle
Y Axis
5 Axis
Chip Conveyor
Bar Feeder
Live Tooling
Sub Spindle
Y Axis
5 Axis
Seller:
BranP761
Location:
USA
