Machine Overview
Chuck Size: 8?
Sub Spindle: 6?
Spindle Speed: 4,500 RPM
Live Tooling: 5,000RPM
Spindle Motor: 14.8 HP
X Axis Travel: 8.7?
Z Axis Travel: 15.75?
Y Axis Travel: 3.94?
C Axis Travel: .001Deg
W Axis Travel: 19.92?
Rapid Rate Z Axis: 1,062 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 11?
Max Turning Length: 14.96?
Dimensions: 97.24? x 72.83? x 75.98?
Weight: 13,000 LB
# Axis 5
Swing 11"
Machining Length 14.96"
Chuck Size 8"
Bar Capacity 2"
Power 14.8 hp
Max RPM 5,000 RPM
Turning Dia 11"
Control CNC (Fanuc 0i-TF)
Dimensions 97.24? x 72.83? x 75.98?
Weight 13,000 LBS
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis

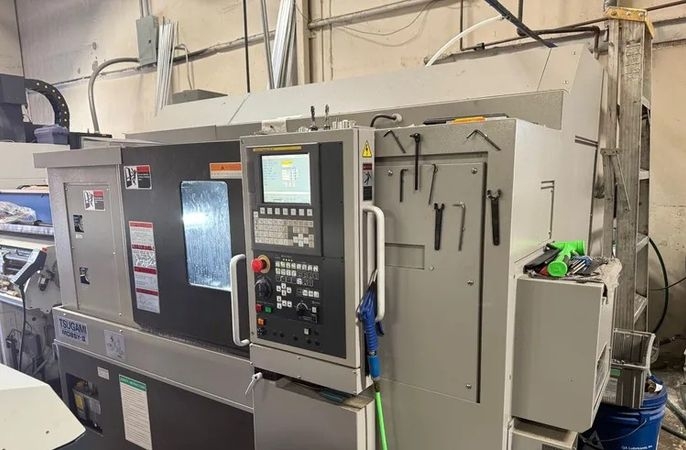

Pre-owned TSUGAMI M08SY 2019 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in California. This TSUGAMI CNC Lathe is available for a limited time. Get a quote today on this M08SY before it's gone.
