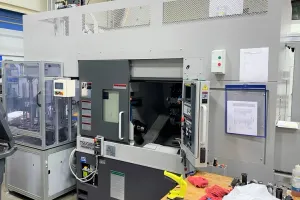

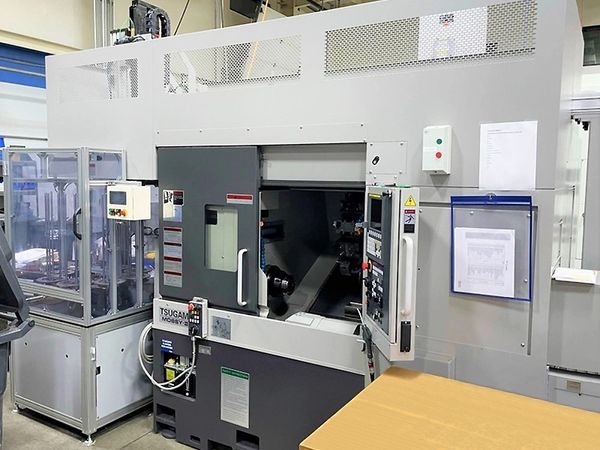

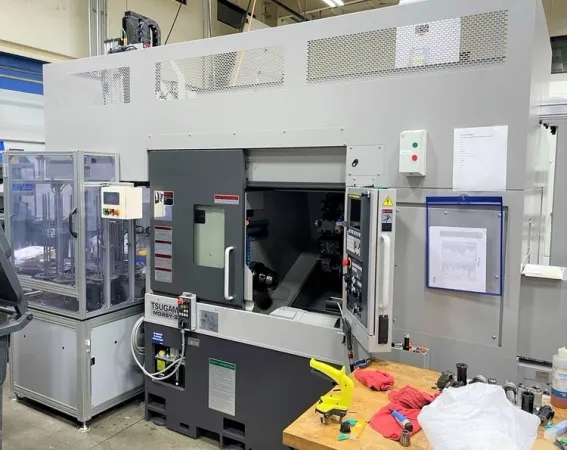

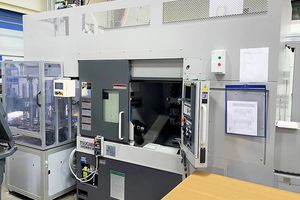

2020 TSUGAMI M08SYII

Overview
Type:
Lathes CNC
Manufacturer:
TSUGAMI
Model:
M08SY-II
Year:
2020
Stock #:
62162
Status:
For Sale
Description
233 Hours, Live Tool, Sub Spindle, Y Axis, Gantry Load, Barfeed, Like New


Specifications
Tsugami M08SYII Live Tool Y Axis CNC Lathe with Sub Spindle (2020)

Specifications:
Max. Machining Diameter 280 mm (11.02")
Max. Machining Length 380 mm (14.96")
Distance Between Spindles 508mm (20.0")
Max. Chuck Size 8"
Max. Spindle Speed 200 to 4,500 Rpm
Sub-Spindle Speed 200 to 4,500 Rpm
Main Spindle JIS A2-6
Main Spindle Bore 2.87"
No. of Turret Stations 12
Main Live Tool Speed Up to 5,000 Rpm
Main Motor 7.5/11 Kw
Rapid Traverse Rate: X-Axis 24 Mm/min
Y-Axis 12 Mm/min
Z-Axis 30 Mm/min


Equipped With
Fanuc OiTF Cnc Control
Sub-Spindle
Live Milling
Single Arm, Gantry Loader, stocker
Collet Nose on Main & Sub Spindle
Lns Turbo Chip Conveyor
Mist-fit Misting unit
3-Jaw Chuck
Coolant
Y-Axis
Misc. Tooling
C-Axis on Main & Sub Spindle
*** Approx. 233 Hours on Machine ***
Machine was built in 2018 / delivered & installed new in 2020

Chip Conveyor
Tool Presetter
Bar Feeder
Live Tooling
Sub Spindle
Y Axis
