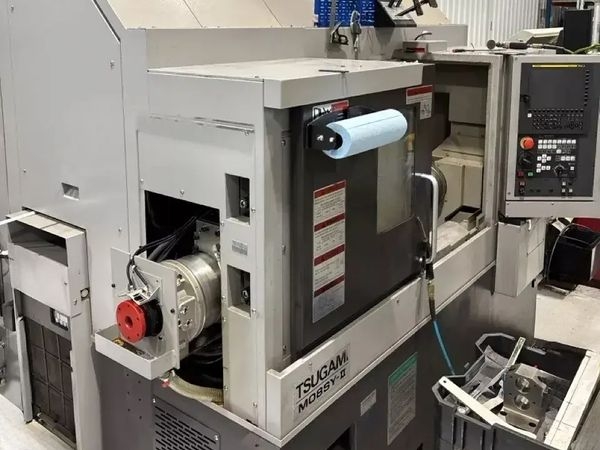

TSUGAMI M08SYII CNC Lathe

Bar Capacity: 2.56"
Chuck Size: 8"
Sub Spindle: 6"
Spindle Speed: 4,500 RPM
Live Tooling: 5,000RPM
Spindle Motor: 15 HP
X Axis Travel: 8.7"
Z Axis Travel: 15.75"
Y Axis Travel: 3.94"
C Axis Travel: .001Deg
W Axis Travel: 19.92"
Rapid Rate Z Axis: 1,062 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 11"
Max Turning Length: 14.96"
Dimensions: 106" x 74" x 75"
Weight: 13,228 LBS

Fanuc
Tool Presetter
Bar Feeder
Live Tooling
Sub Spindle
Y Axis
300 PSI High Pressure Coolant Thru Turret and Ejector
Y Axis Turret Positioning by Compound Slide with 3.94” Total Stroke
All Stations Live Tool Capable with 5Hp live tool motor
Integrated Motor Main Spindle with C-axis and Brake
2 Speed Electronic Winding on Main Spindle for high torque at lower speeds
Integrated Motor Sub Spindle with C-axis and Brake
Spindle Chiller circulating temperature controlled oil to Main and Sub spindle
Rigid Tapping on Main, Sub, and Live tool
Spindle and Turret Air Purge
Tool Touch Setter, Manual Swing Down
8” 3 Jaw Hollow Chuck on Main Spindle
2.56” Bar Capacity Through Main Spindle
6” 3 Jaw Hollow Chuck on Sub Spindle
2.04” Though Sub Spindle Bore
Foot Switches for Main and Sub Chucks
Pneumatic Ejector, 5.5” stroke (3295-Y1471)
LNS Bar Feeder
