Seller Needs:
$189,000|
1020
|
0

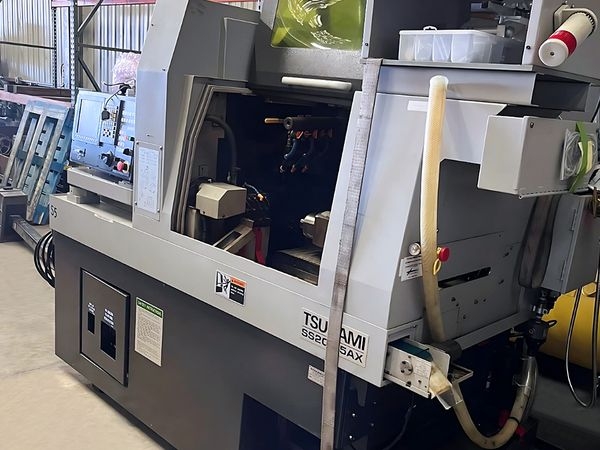

Pre-owned TSUGAMI SS207 5AX 2015 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a FANUC 31i CONTROL control. This CNC Machine is currently located in USA. This TSUGAMI CNC Lathe is available for a lim...Read More
Seller Needs:
Payment:
Specs:
Maximum Machining Dia. .787"
Maximum Machining Length 8.26"/Chucking
Main Spindle Speed 200~10,000 RPM
Rotary Tool Spindle Speed 200~8,000RPM
Back Spindle Max. Dia. .787"
Back Spindle Front Ejection Maximum Length 3.2"
Back Spindle Speed 200~10,000 RPM
Rapid Traverse Rate 1259 inch/min
Input Power 6KVA
Center Height 39.37"
Weight 7,260 LBS
Main Spindle 3/5 HP
Back Spindle 2/3 HP
Rotary Tool 1 HP
Coolant 0.5 HP
B1 Axis Tool Spindle Position
Positioning Angle 0° - 110°
Positioning method Servo controlled
Number of tool positions 6 (3 main and 3 sub)
Rotary tool speed 5,000 rpm
Main spindle tool collet ER16
Sub spindle tool collet ER11
Positioning angle 0 - 110 degree
Maximum Machining Length 8.26"/Chucking
Main Spindle Speed 200~10,000 RPM
Rotary Tool Spindle Speed 200~8,000RPM
Back Spindle Max. Dia. .787"
Back Spindle Front Ejection Maximum Length 3.2"
Back Spindle Speed 200~10,000 RPM
Rapid Traverse Rate 1259 inch/min
Input Power 6KVA
Center Height 39.37"
Weight 7,260 LBS
Main Spindle 3/5 HP
Back Spindle 2/3 HP
Rotary Tool 1 HP
Coolant 0.5 HP
B1 Axis Tool Spindle Position
Positioning Angle 0° - 110°
Positioning method Servo controlled
Number of tool positions 6 (3 main and 3 sub)
Rotary tool speed 5,000 rpm
Main spindle tool collet ER16
Sub spindle tool collet ER11
Positioning angle 0 - 110 degree
Options:
FANUC 31i CONTROL
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
250 Watt SPI Fiber Laser System
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
250 Watt SPI Fiber Laser System
Seller:
MikaU314
Location:
USA
