Seller Needs:
$123,500|
10
|
0

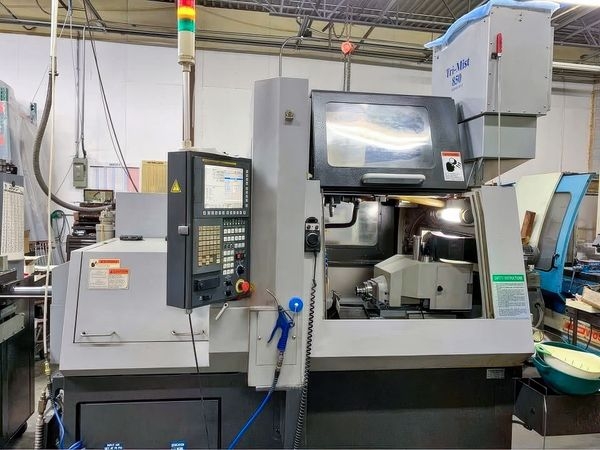

This 2012 TSUGAMI SS32 is a sturdy machine designed to meet various machining needs. It includes essential features such as a Chip Conveyor and a Parts Catcher, making it a versatile choice for any workshop.
The TSUGAMI SS3...Read More
Seller Needs:
Payment:
Specs:
Specification
Bar Capacity 32 mm
Max Machining Length 320 mm (12.6")
Max Drilling Diameter 0.47"
Max Tapping Diameter 0.39"
Max Back Spindle Chucking Diameter 1.25"
Max Back Spindle Drilling Diameter 0.39"
Max Back Spindle Tapping Diameter 0.31"
Tool Positions 24 Max
Live Tool Positions 6 Main & 4 Sub
Live Tool Speed 5,000 RPM
Spindle Speeds (Main) 8,000 RPM
Spindle Speeds (Sub) 8,000 RPM
Main Spindle Motor 7.4 HP
Back Spindle Motor 5 HP
Machine Dimensions 79.5" X 66" X 79.5"
Weight 7,500 Lbs.
Equipped With:
Fanuc 32i-Model B
Chucker Kit
FMB Turbo 3-38 Barfeed
Chip Conveyor
Parts Catcher
Cool Jet High Pressure Coolant
Tri Mist 850 Mist Collector
Misc Tooling
Bar Capacity 32 mm
Max Machining Length 320 mm (12.6")
Max Drilling Diameter 0.47"
Max Tapping Diameter 0.39"
Max Back Spindle Chucking Diameter 1.25"
Max Back Spindle Drilling Diameter 0.39"
Max Back Spindle Tapping Diameter 0.31"
Tool Positions 24 Max
Live Tool Positions 6 Main & 4 Sub
Live Tool Speed 5,000 RPM
Spindle Speeds (Main) 8,000 RPM
Spindle Speeds (Sub) 8,000 RPM
Main Spindle Motor 7.4 HP
Back Spindle Motor 5 HP
Machine Dimensions 79.5" X 66" X 79.5"
Weight 7,500 Lbs.
Equipped With:
Fanuc 32i-Model B
Chucker Kit
FMB Turbo 3-38 Barfeed
Chip Conveyor
Parts Catcher
Cool Jet High Pressure Coolant
Tri Mist 850 Mist Collector
Misc Tooling
Options:
Chip Conveyor
Parts Catcher
Parts Catcher
