Seller Needs:
$46,000|
513
|
2

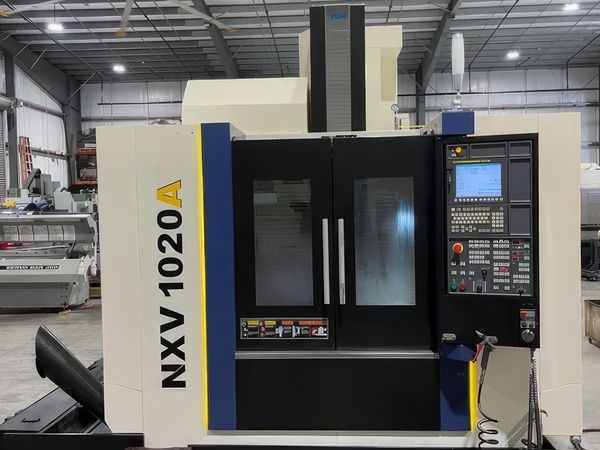

Pre-owned YCM NXV1020A 2014 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a Fanuc Enhanced MXP-200FA Control control. This CNC Machine is currently located in Florida....Read More
Seller Needs:
Payment:
Specs:
Table Size: 44" x 20.47"
Max Table Load: 1,102 LBS
X Axis Travel: 40.16"
Y Axis Travel: 20.47"
Z Axis Travel: 21.26"
Spindle Nose To Table Top: 27.2"
Spindle Motor: 25 HP
Spindle Speed: 12,000 RPM
Spindle Taper: CAT40
Tool Changer: 24 + 1 ATC
Tool Change Time: 1.7sec (T-T) 3.5sec (C-C)
Rapid Rate X Axis: 1,890 IPM
Rapid Rate Y Axis: 1,890 IPM
Rapid Rate Z Axis: 1,260 IPM
X-Axis Cutting Feedrate: 786 IPM
Y-Axis Cutting Feedrate: 786 IPM
Z-Axis Cutting Feedrate: 786 IPM
EQUIPPED WITH:
Fanuc MXP-200FA CNC Controller
M.P.G. Manual Pulse Generator
RENISHAW Table Probe , RENISHAW Probe Reader
Make Note: NO TOOL SETTER PROBE
Work light
Quad chip augers
Dual coolant pumps
Shipping Bracket
Electrical: 220 volt / 3 phase / 60 H.Z.
Machine dimensions- 112” x 108” x 108” H
Machine Weight: 11,795 LBS
Max Table Load: 1,102 LBS
X Axis Travel: 40.16"
Y Axis Travel: 20.47"
Z Axis Travel: 21.26"
Spindle Nose To Table Top: 27.2"
Spindle Motor: 25 HP
Spindle Speed: 12,000 RPM
Spindle Taper: CAT40
Tool Changer: 24 + 1 ATC
Tool Change Time: 1.7sec (T-T) 3.5sec (C-C)
Rapid Rate X Axis: 1,890 IPM
Rapid Rate Y Axis: 1,890 IPM
Rapid Rate Z Axis: 1,260 IPM
X-Axis Cutting Feedrate: 786 IPM
Y-Axis Cutting Feedrate: 786 IPM
Z-Axis Cutting Feedrate: 786 IPM
EQUIPPED WITH:
Fanuc MXP-200FA CNC Controller
M.P.G. Manual Pulse Generator
RENISHAW Table Probe , RENISHAW Probe Reader
Make Note: NO TOOL SETTER PROBE
Work light
Quad chip augers
Dual coolant pumps
Shipping Bracket
Electrical: 220 volt / 3 phase / 60 H.Z.
Machine dimensions- 112” x 108” x 108” H
Machine Weight: 11,795 LBS
Options:
Fanuc Enhanced MXP-200FA Control
Probe
Programmable Coolant
Manual Pulse Generator
Renishaw Probe System (Missing Tool Setter)
Quad Chip Augers
Dual Coolant Pumps
Work Light
ONLY 5,415 Hours
Probe
Programmable Coolant
Manual Pulse Generator
Renishaw Probe System (Missing Tool Setter)
Quad Chip Augers
Dual Coolant Pumps
Work Light
ONLY 5,415 Hours
Seller:
MattS394
Location:
FL
