Seller Needs:
$13,500|
269
|
0

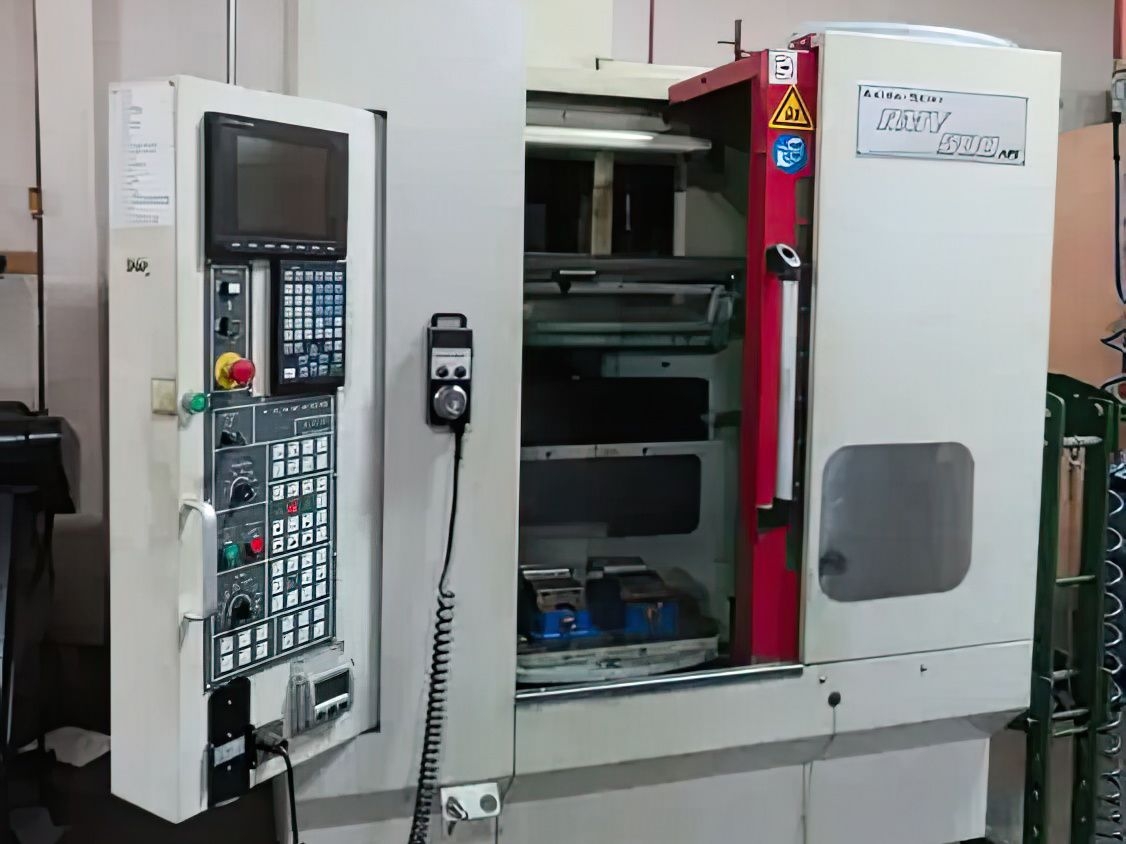

Pre-owned AKIRA SEIKI RMV500APC 2012 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a Fanuc control. This CNC Machine is currently located in Oregon. This AKIRA SEIKI V...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 19.69"
Y Axis Travel: 11.81"
Z Axis Travel: 11.02"
Spindle Motor: 13 HP
Spindle Speed: 20,000 RPM
Spindle Taper: HSK40A
Tool Changer: 24 ATC
Rapid Rate X Axis: 2,362 IPM
Rapid Rate Y Axis: 2,362 IPM
Rapid Rate Z Axis: 2,834 IPM
Table Size: 20" x 12"
Dimensions: 112" x 60" x 118"
Weight: 9,300 LBS
Tooling Specifications:
......Max. Diameter: 1.97"
......Max. Tool Length: 6.89"
......Max. Tool Weight: 5.51 lbs.
Electrics: 220 Volt, 3 Phase, 50-60 Hz, 26 FLA
Current owner is trimming down the number of machines he is running in his shop for efficiency purposes. This machine has been a good runner but he has chosen to run production on another machine. Unit is under power; available for inspection and test.
Y Axis Travel: 11.81"
Z Axis Travel: 11.02"
Spindle Motor: 13 HP
Spindle Speed: 20,000 RPM
Spindle Taper: HSK40A
Tool Changer: 24 ATC
Rapid Rate X Axis: 2,362 IPM
Rapid Rate Y Axis: 2,362 IPM
Rapid Rate Z Axis: 2,834 IPM
Table Size: 20" x 12"
Dimensions: 112" x 60" x 118"
Weight: 9,300 LBS
Tooling Specifications:
......Max. Diameter: 1.97"
......Max. Tool Length: 6.89"
......Max. Tool Weight: 5.51 lbs.
Electrics: 220 Volt, 3 Phase, 50-60 Hz, 26 FLA
Current owner is trimming down the number of machines he is running in his shop for efficiency purposes. This machine has been a good runner but he has chosen to run production on another machine. Unit is under power; available for inspection and test.
Options:
AKIRA Mi645 (Powered by Fanuc)
Coolant Thru Spindle
Programmable Coolant
Air Cooled
Pendant Control
Centralized Lubrication
Coolant System
Mist Collector
2-Pallet Shuttle
No Vises
Coolant Thru Spindle
Programmable Coolant
Air Cooled
Pendant Control
Centralized Lubrication
Coolant System
Mist Collector
2-Pallet Shuttle
No Vises
Seller:
JerrS494
Location:
OR
