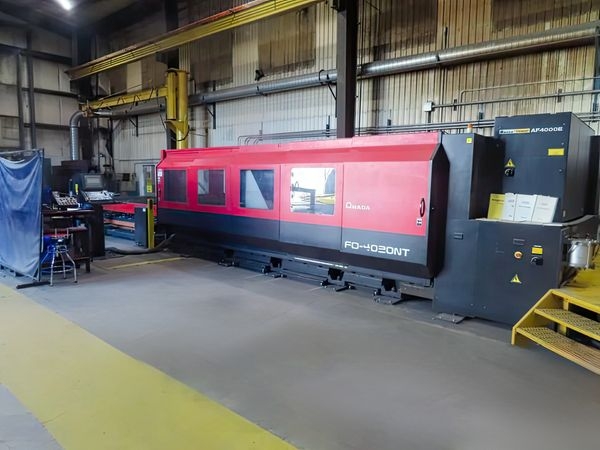

Amada CO2 Laser Cutting Machine
Model: FO-4020NT / AF4000E
Type: Fanuc Laser C4000, A04B-0815-B301
Serial No.: On Request
DOM: July 2008
Electrics: 200-220 Volt, 3 Phase, 50-60 Cycle, 190 Amp
Power Req't: 55 KVA
Capacity: 4,000 Watt CO2 Laser Beam
Hours: 61,993
Features and Specifications:
...CNC Controlled
...Pallet Shuttle
...Travels:
......X - 174.02"
......Y - 80.71"
......Z - 7.87"
...Cutting Area:
......X - 160.2"
......Y - 80.71"
......Z - 7.87"
...Cutting Feedrate:
......X,Y - 0 - 65.60 FPM
...Max. Rapid Feedrate:
......X,Y - 262.4 FPM
......Z - 196.8 FPM
...Max. Worksheet Weight: 3,461.9 lbs.
...Table Height: 37.01"
...Water Assist Cut System: 2 Gallons
...Chiller: 40 Gallons
...No. of Bend Mirrors inc. Collimaton: 5
...Adaptive Optics: 1
...EZ Cut System: Nitrogen Gas Assist System (see pics)
...Farr Dust Collection Unit (see pics)
...Orion Air Dryer: QSQ180W-11CA1
...Inverter Chiller: Orion RKE15000A-VA-UU
...Electrical Transformer
Advertising specifications taken from 1st-hand inspection, owner interview, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.
Main Machine Weight (approx.): 26,440 lbs.
Main Machine Dimensions (approx.): 300" x 144"
Chiller Dims (approx.): 68" x 40" x 75" Tall
Air Dryer Dims (approx.): 12" x 14" x 48"
EZ Cut Dims (approx.): 60" x 36" x 84"
Farr Dust Collector (approx.): 144" x 72" x 120" Tall
Functionality Notes:
Unit was purchased new in 2008 by current owner. This laser has been meticulously cared for and maintained by not only maintenance personnel but operators who keep logs. I have pictures of this documentation. This laser comes complete with ALL manuals, dust collection system, Amada EZ Cut Nitrogen Gas assist station, chiller, air dryer, and transformer.
The owner has changed the turbos every 2 years and has regular preventative maintenance program for this machine. The pictures and imbedded videos are indicative of the care taken with this machine. I have lots of extra pictures that can be supplied on request.
