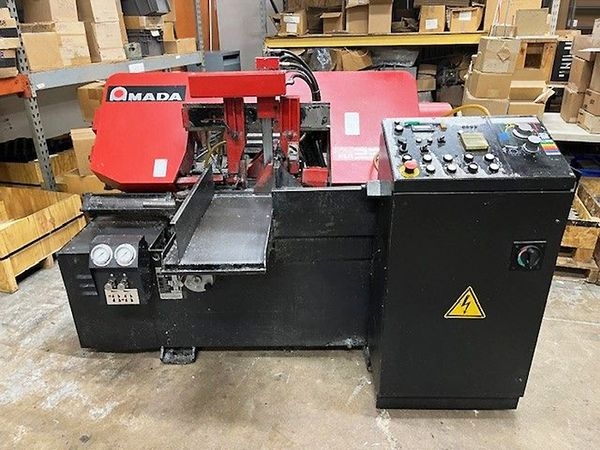

2011 AMADA HA 250 W

Blade: Yes
Cutting Capacity
Round Diameter: 1.18" – 10"
Rectangle (W × H): 11.8" × 10"
Load Capacity: 3,307 lbs

Saw Blade
Bde Size (L × T × W): 11" 6" × 0.042" × 1-1/4"
Blade Speed: 89–295 ft/min (Stepless, 60 Hz)
Tension Control: Hydraulic
Top Limit Setting: Automatic with Quick Approach Feeler

Cutting & Vise Control
Cutting Control: Hydraulic pressure/flow control valve
Vise Type: Main split vise and rear vise
Vise Operation: Hydraulic full-stroke cylinder

Motors
Saw Blade Motor: 5 HP
Hydraulic Pump Motor: 1 HP
Cutting Fluid Pump: 1/4 HP

Power Requirement
Voltage: AC 220V ±10% or AC 440V ±10%, 3-phase, 60 Hz
Power Consumption: 8 kVA
Cutting Fluid System
Tank Capacity: 22.5 gallons
Pump Type: Centrifugal electric
Pump Capacity: 5.3 gallons/min

Hydraulic System
Tank Capacity: 7.9 gallons
Pump Type: Variable discharge vane electric
Pump Capacity: 4.0 gallons/min
Pressure Setting: 384 psi
Chip & Material Indexing
Chip Disposal: Chip conveyor
Index Mechanism: Shuttle vise
Index Stroke: 15.75" (up to 9 times)
Index Length Range: 0.394? – 141.7?
Number of Input Stations: 1
Number of Cut-Off Pieces: 1 – 9,999
Remnant Length: 2.24? plus part length

Machine Dimensions & Weight
Head-Up Position (W × L × H): 76.5? × 93.1? × 69.8?
Head-Down Position (W × L × H): 76.5? × 93.1? × 50.6?
Table Height: 27.6"
Machine Weight: 3,307 lbs
