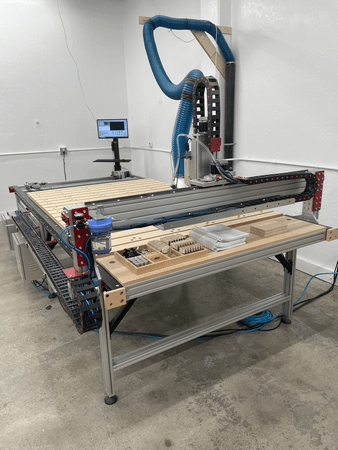

Pre-owned AVID Pro 60120 2021 Router. This Router has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This AVID Router is available for a limited time. Get a quote today ...Read More
Notify Me:
Specs:
Work Area: (PDF)
X: 61-3/8" (1559 mm)
Y: 124-1/4" (3156 mm)
Z: 8" (203 mm)
Footprint:
Width: 78-3/4" (2000 mm) or 88-3/4" (2255 mm) with extended gantry [2]
Length: 141" (3582 mm)
Height: 43-3/8" (1100 mm)
77-1/2" (1970 mm)(with optional Leg Kit)
Weight: 555 lbs (252 kg)
708 lbs (321 kg) (with optional Leg Kit)
Cutting Speed:250 IPM (NEMA 23 version)*
500 IPM (NEMA 34 version)*
Rapid Speed:500 IPM (NEMA 23 version)*
1000 IPM (NEMA 34 version)*
Drive System:X/Y: PRO Rack and Pinion
Z: Precision Ballscrew
Resolution:X/Y: 0.0005” (0.0127 mm)
Z: 0.0002” (0.005 mm)
X: 61-3/8" (1559 mm)
Y: 124-1/4" (3156 mm)
Z: 8" (203 mm)
Footprint:
Width: 78-3/4" (2000 mm) or 88-3/4" (2255 mm) with extended gantry [2]
Length: 141" (3582 mm)
Height: 43-3/8" (1100 mm)
77-1/2" (1970 mm)(with optional Leg Kit)
Weight: 555 lbs (252 kg)
708 lbs (321 kg) (with optional Leg Kit)
Cutting Speed:250 IPM (NEMA 23 version)*
500 IPM (NEMA 34 version)*
Rapid Speed:500 IPM (NEMA 23 version)*
1000 IPM (NEMA 34 version)*
Drive System:X/Y: PRO Rack and Pinion
Z: Precision Ballscrew
Resolution:X/Y: 0.0005” (0.0127 mm)
Z: 0.0002” (0.005 mm)
