2020 BAILEIGH WR84V #8410

X Axis Travel: 51"
Y Axis Travel: 98"
Z Axis Travel: 5.35"
Spindle Speed: 18,000RPM
Spindle Motor: 7.4HP
Actual Working Area: 97" x 48"
Maximum Moving Speed: 590 IPM
Maximum Engraving Speed: 590 IPM
Tool Diameters: ER32
Power: 220V Single Phase

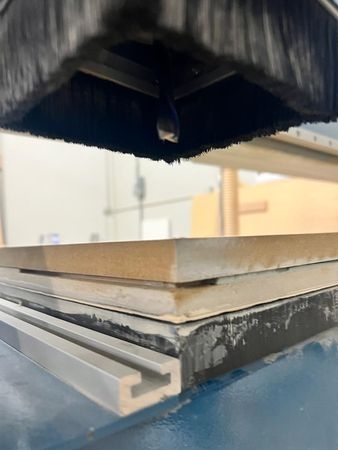

Table Style: T-Slot with Vacuum Option
AMP Draw: 35 at full load
Shipping Dimensions: 124" x 86" x 70"
Table Size: 48.5" x 98.875"
Dimensions: 118" x 78" x 65"
Weight: 2,500

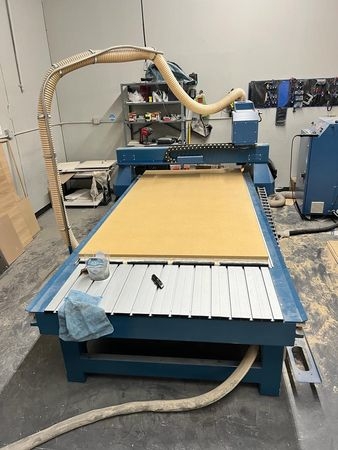

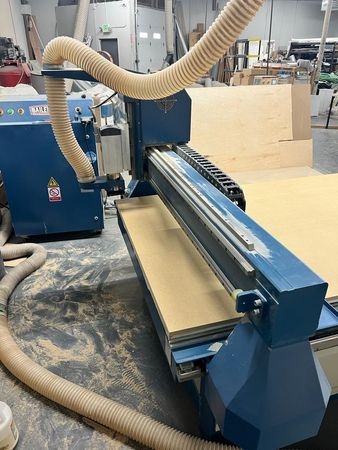

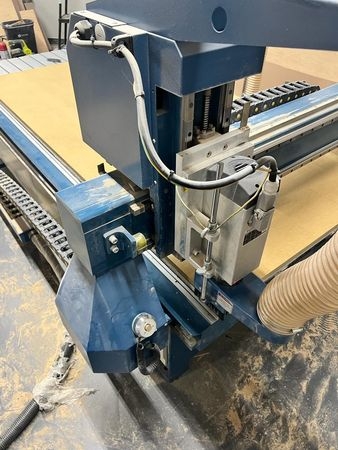

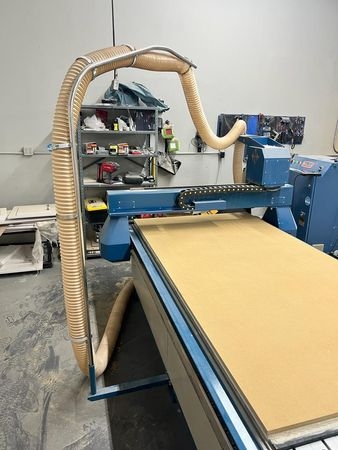

CNC ROUTING TABLE - WR-84V
4' x 8' CNC router table
220V 1-phase power
7.4 hp spindle
Optional vacuum pump available
BobCAD-Cam Express software included

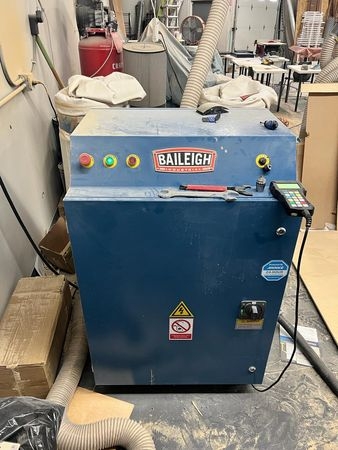

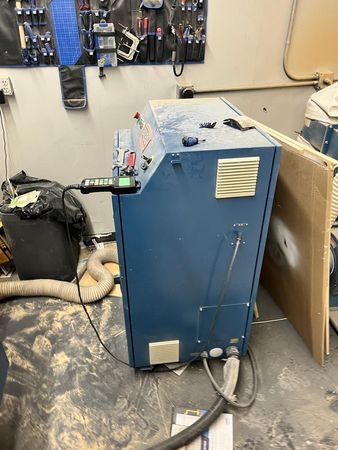

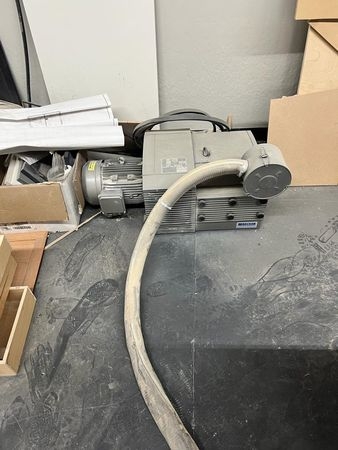

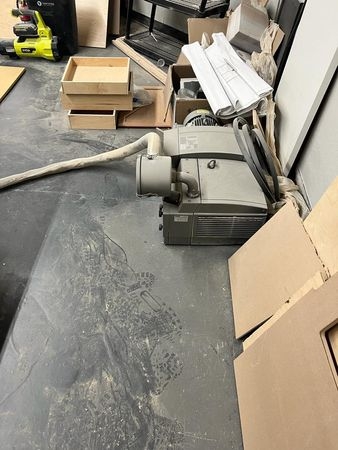

WR-84V VACUUM PUMP
Optional Vacuum Pump for WR-84V CNC Table
7.3 hp
220V 3 phase

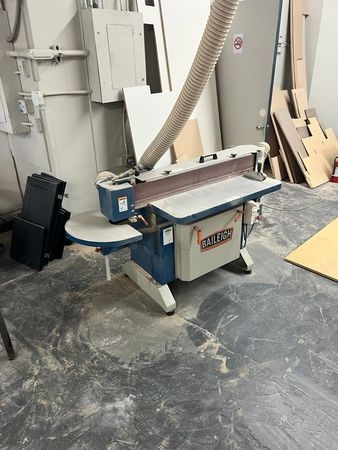

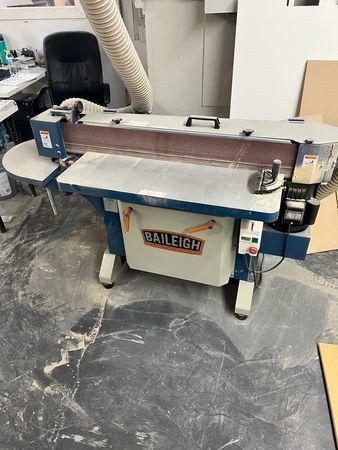

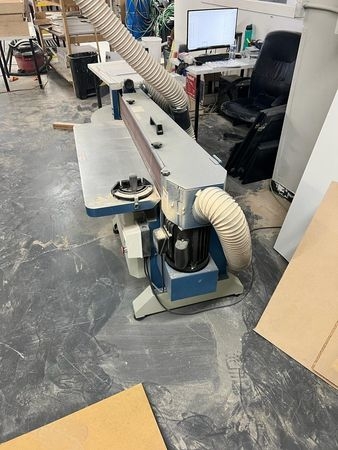

OSCILLATING EDGE SANDER ES-9138
9” x 138.5” belt
11¾” x 48” table
220V 1-phase
Table tilts +45° and -5°

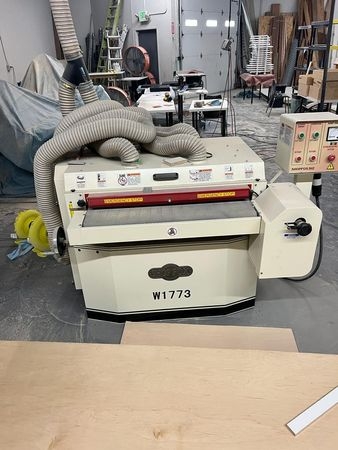

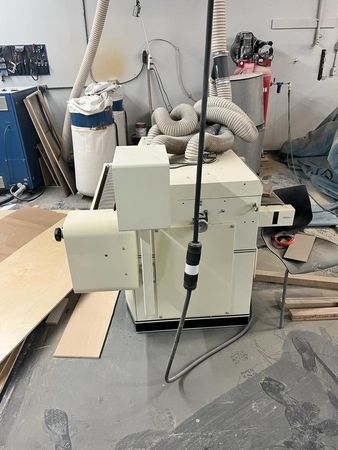

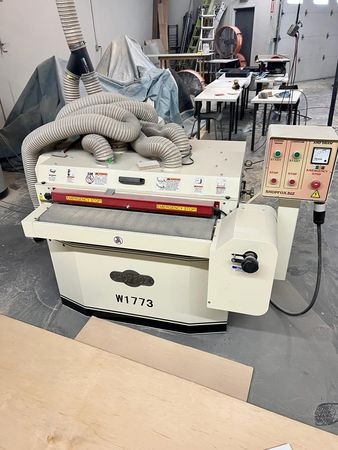

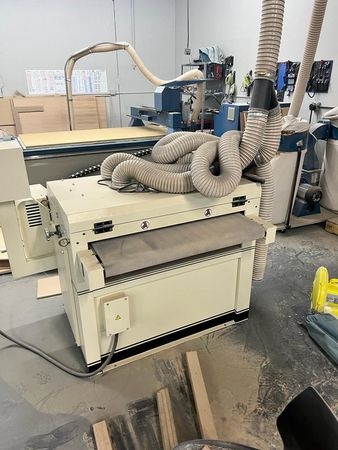

GRIZZLY G0450 - 37" 15 HP 3-PHASE DRUM SANDER
G0450 37" 15 HP 3-Phase Drum Sander
A three-phase drum sander for industrial sanding.
Built for production environments, the G0450 37" 15 HP Drum Sander features industrial-quality conveyor belts and dual 6" sanding drums.
The dual drum setup allows you to place different grits of sandpaper on each drum; cutting your sanding time in half. The sandpaper length needed is 6" wide by 138" long. For a full range of replacement paper for the G0450, shop here.
Sand stock up to 36-1/2" wide and 4" thick with variable-speed feed control and the economy of spiral-wrapped 6" wide sandpaper rolls.
When the G0450 is wired for 480V, it will operate on a 30A circuit!
With the variable-speed conveyor, you can dial in the perfect finish for each job between 6–18 FPM.
The amp load meter indicates the combined amperage draw of both motors, allowing you to monitor them and prevent damage to them.
The depth scale indicates the thickness the workpiece will be after it has been sanded.
Also features four 4" dust ports to maximize dust collection, easy access to sanding drums, emergency stop for safety, solid steel construction, independent motor control, and massive power.
Like all Grizzly drum sanders, the G0450 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.
The G0450 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your sander.
The Grizzly Customer Service and Technical Support Teams are also U.S.-based. Parts may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
CSA certified
SPECIFICATIONS:
Sanding drum motor: 15 HP, 240V/480V* (prewired 240V), 3-phase, 43A/21.5A
Conveyor motor: 1/3 HP
Maximum board dimensions: 36-1/2" W x 4" T
Minimum board dimensions: 9" L x 1/16" H
Surface speed of drums: 2800 FPM
Conveyor feed rate: Variable, 6–18 FPM
Sanding drums: 2, steel/rubber-coated
Sandpaper size: 6" x 138"
Overall Dimensions: 68" W x 50-1/2" D x 49" H
Approx. shipping weight: 1382 lbs.
FEATURES:
Spring-loaded sanding belt tension/sandpaper
Industrial-duty rubber conveyor belt
Four 4" dust ports
Variable-speed conveyor
6" steel/rubber-coated sanding drums
Easy access control panel with load meter
Hinged hood with gas struts for easy drum access
State-of-the-art computer-balanced drums

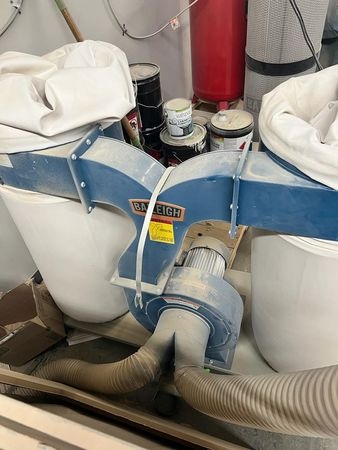

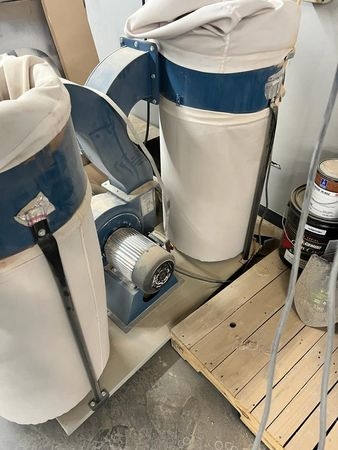

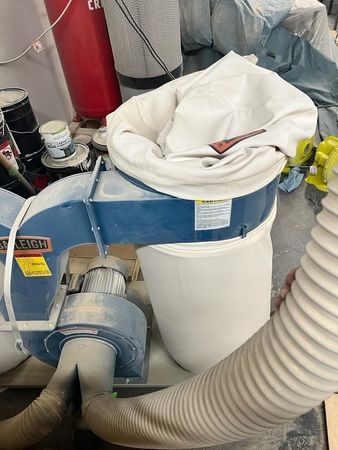

DUST COLLECTOR DC-2300B
3 hp 220V 1-phase motor
30 micron bag-style design
2,300 CFM
3 dust ports (4”)

CRAFTSMAN
60-Gallons 175 PSI Vertical Air Compressor with Accessories
Shop the Collection
Model #CMXECXM601
$899.00

Baileigh
Dust Collector
Vacuum System
WR-84V VACUUM PUMP ($4,590)
OSCILLATING EDGE SANDER ES-9138 ($5,870)
Grizzly G0450 - 37" 15 HP 3-Phase Drum Sander ($5,995)
DUST COLLECTOR DC-2300B ($1,142)
CRAFTSMAN 60-Gallons 175 PSI Vertical Air Compressor with Accessories ($899)
