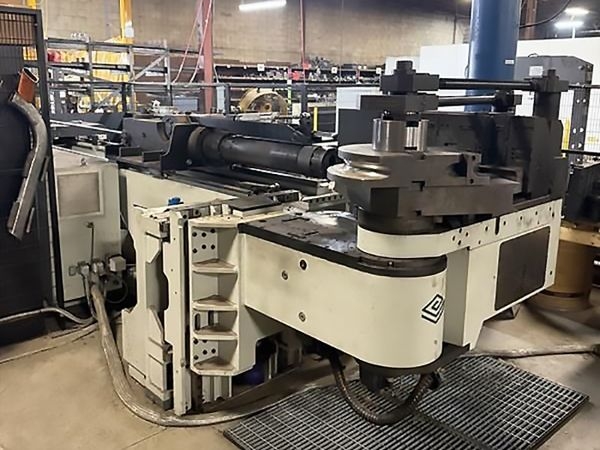

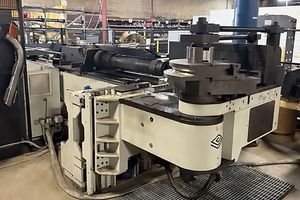

2022 BLM ELECTL102B

Max. Tube OD (mm; round tube) 102MM (4.0")

Power: 30HP
bending angle: 195°
weight: 2,650kg

All electric axis (up to 10 axes)
Manual or automatic loading options
Multi-stack - up to 8 tools can be mounted
Highest repeatability and precision can be consistently achieved
Fixed and variable radius bending with booster up to 60,000 N
Range of models can process tubes up to 150 mm (6”) diameter
In-process left or right bending radius
Ergonomically designed
No deformation of the tube shape even on tight radius bends
Excellent cosmetic finish with minimal marring
Zero scrap
Key Technical Specifications

Max. Tube OD (mm; round tube) 102MM (4.0")
X-Axis Accuracy (mm)
+/- 0.05

Y-Axis Accuracy (degrees))
+/- 0.05

Z-Axis Accuracy (degrees)
+/- 0.05

Performance:
Bending Direction
Left or Right
