Charmilles: Pioneering Electrical Discharge Machining Before the GF Machining Solutions Merger
Charmilles, a name synonymous with precision and innovation in electrical discharge machining (EDM), has a rich history that dates back to the mid-20th century. Before merging with GF Machining Solutions, Charmilles established itself as a leader in the EDM industry, known for its cutting-edge technology and commitment to quality.
History of Charmilles
Founding and Early Innovations
Charmilles was founded in 1954 in Geneva, Switzerland. The company quickly made a name for itself by focusing on the development and production of EDM machines. EDM technology, which uses electrical discharges to machine conductive materials, was relatively new at the time, and Charmilles was at the forefront of its development.
Key Milestones
1950s-1960s: Early Development
- Charmilles introduced some of the first commercial EDM machines, which revolutionized the manufacturing industry by allowing for precise machining of hard materials.
- The company focused on improving the reliability and accuracy of its machines, setting the standard for EDM technology.
1970s: Expansion and Innovation
- Charmilles continued to innovate with the introduction of automated features and improved control systems for its EDM machines.
- The company expanded its product range to include wire EDM machines, which further enhanced the precision and versatility of EDM technology.
1980s: Global Growth
- Charmilles established a global presence, opening subsidiaries and distribution networks in key markets around the world.
- The company invested heavily in research and development, leading to significant advancements in EDM technology, including improved machining speeds and surface finishes.
1990s: Technological Leadership
- Charmilles introduced several groundbreaking products, such as the Robofil series of wire EDM machines, which featured advanced control systems and automation capabilities.
- The company also developed new dielectric fluid technologies and more efficient power supplies, further enhancing the performance of its EDM machines.
Commitment to Quality and Innovation
Throughout its history, Charmilles maintained a strong commitment to quality and innovation. The company’s focus on research and development allowed it to continually improve its products and stay ahead of the competition. Charmilles’ EDM machines were known for their precision, reliability, and advanced features, making them the preferred choice for manufacturers in various industries, including aerospace, automotive, and medical devices.
Merger with GF Machining Solutions
In 1996, Charmilles merged with Agie, another leading EDM manufacturer, to form Agie Charmilles. This merger combined the strengths of both companies, creating a powerhouse in the EDM industry. The new entity continued to innovate and expand its product offerings, maintaining its position as a leader in the market.
In 2013, Agie Charmilles became part of GF Machining Solutions, the machine tool division of Georg Fischer AG. This merger allowed Charmilles to leverage the resources and expertise of GF Machining Solutions, further enhancing its capabilities and expanding its reach in the global market.
Charmilles EDM Models
Wire EDM Machines
| Model | Table Size (inches) | X/Y/Z Travel (inches) | Features |
|---|---|---|---|
| Robofil 240 CC | 19.7 x 13.8 | 13.8 x 9.8 x 9.8 | High precision, automatic wire threading |

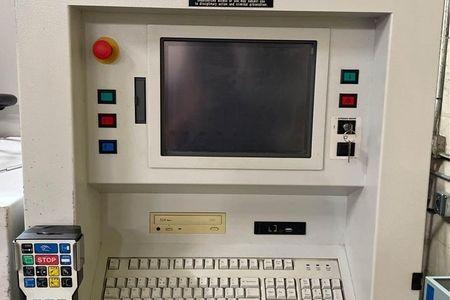

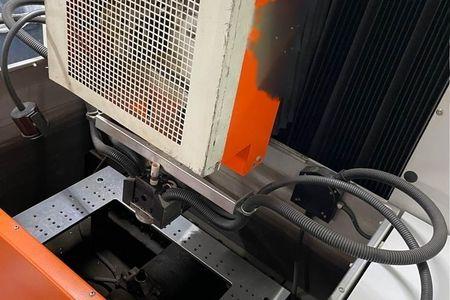

| Robofil 440 CC | 29.5 x 21.7 | 21.7 x 15.7 x 15.7 | Advanced control, fine finish |
| Robofil 690 CC | 41.3 x 31.5 | 31.5 x 23.6 x 19.7 | Large capacity, high-speed machining |
Die-Sinking EDM Machines
| Model | Table Size (inches) | X/Y/Z Travel (inches) | Features |
|---|---|---|---|
| Roboform 20 | 19.7 x 13.8 | 13.8 x 9.8 x 9.8 | High precision, digital control |
| Roboform 40 | 27.6 x 19.7 | 19.7 x 13.8 x 13.8 | Automated features, superior surface finish |
| Roboform 100 | 39.4 x 27.6 | 31.5 x 23.6 x 19.7 | Large capacity, advanced technology |
Hole-Drilling EDM Machines
| Model | Table Size (inches) | X/Y/Z Travel (inches) | Features |
|---|---|---|---|
| Drill 20 | 11.8 x 7.9 | 7.9 x 5.9 x 9.8 | Precision drilling, user-friendly interface |
| Drill 30 | 15.7 x 11.8 | 11.8 x 9.8 x 11.8 | High-speed drilling, compact design |
| Drill 50 | 19.7 x 15.7 | 15.7 x 11.8 x 13.8 | Advanced control, versatile applications |
What Made Charmilles Controls Unique
Charmilles’ EDM controls were known for their innovation, precision, and user-friendly interfaces. These controls integrated advanced technologies to enhance machining capabilities and productivity.
Key Features of Charmilles Controls
- Advanced Programming: Charmilles controls offered intuitive programming features, allowing for complex machining tasks to be performed with ease.
- High Precision: The controls provided exceptional accuracy and repeatability, ensuring high-quality machining results.
- User-Friendly Interface: The graphical user interface was designed to be easy to navigate, reducing the learning curve for operators.
- Integrated Automation: Charmilles controls supported advanced automation features, enabling seamless integration with robotic systems and other automated equipment.
- Real-Time Monitoring: The controls offered real-time monitoring and diagnostics, allowing operators to track machining performance and detect issues promptly.
Capabilities of Charmilles EDM Machines
- High-Speed Machining: The machines were capable of high-speed operations, reducing cycle times and increasing productivity.
- Complex Part Machining: With advanced controls and multi-axis capabilities, Charmilles machines could handle complex geometries and intricate parts.
- Superior Surface Finish: The machines provided excellent surface finishes, making them ideal for applications requiring high-quality aesthetics.
- Versatile Material Handling: Charmilles machines could process a wide range of materials, including hard metals and alloys.
- Energy Efficiency: The machines were designed to be energy-efficient, reducing operational costs and environmental impact.
Conclusion
Charmilles’ history is marked by a series of innovations and technological advancements that have significantly impacted the EDM industry. From its early days in Geneva to its global expansion and eventual merger with GF Machining Solutions, Charmilles consistently demonstrated a commitment to excellence and innovation. Today, as part of GF Machining Solutions, the legacy of Charmilles continues to influence and shape the future of precision machining.
