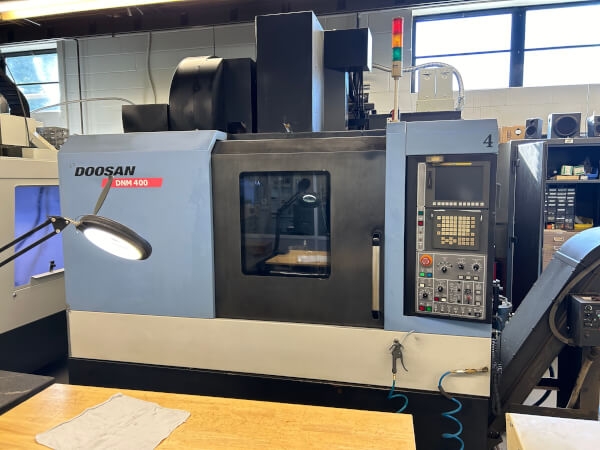

2012 DOOSAN DNM400

ID:10778
Brand:DOOSAN
Model: DNM400
Year:2012
Category:Vertical Machining Center
Location:New Jersey

Located In New Jersey

SHIPPING COST :

Hello!

Machine Overview

Specs:

X Axis Travel: 30.2"
Y Axis Travel: 17.1"
Z Axis Travel: 20.1"
Rapid Rate X Axis: 590 IPM
Rapid Rate Y Axis: 590 IPM
Rapid Rate Z Axis: 590 IPM
Max Table Load: 1,320 LBS
Spindle Motor: 20 HP
Spindle Speed: 8,000 RPM
Spindle Taper: 40 CT
Tool Changer: 30 ATC
Spindle Nose to Table (Min.- Max.): 5.91? – 24.25
Max Tool Weight: 17.6 lbs
Max Tool Length: 11.8"
Max Tool Dia.: 5.9"
Tool Change Time: 1.5 second
Air Required: 90 psi, 4 scfm
Power: 205-220v / 50kva / 3-Phase
Table Size: 36.2" x 17.1"
Weight: 12,500 LBS

Dimensions with conveyor are:
80 inches wide X 11.5 ft. long.

Description:

Pre-owned DOOSAN DNM400 2012 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a Fanuc control. This CNC Machine is currently located in New Jersey. This DOOSAN Vertical Machining Center is available for a limited time. Get a quote today on this DNM400 before it's gone.
