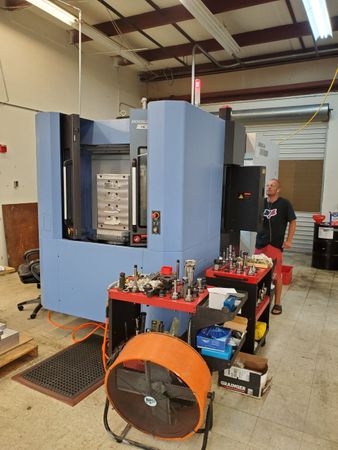

Used DOOSAN HC-400II Horizontal Machining Center
Pre-owned DOOSAN HC-400II 2016 Horizontal Machining Center. This Horizontal Machining Center has average cutting time and is equipped with a Fanuc control. This CNC Machine is currently located in Illinois. This DOOSAN Horizontal Machining Center is available for a limited time. Get a quote today on this HC-400II before it's gone.
Specs:
Pallet Size.................15.75" x 15.75"
Max Pallet Load................... 880 Lbs
Max Part Diameter .................. 23.6"
Max Part Height ...................... 31.5"
X Axis Travel ........................... 23.6"
Y Axis Travel .............................. 22"
Z Axis Travel ........................... 22.2"
Pallet Indexing....................1 Degree
Spindle Nose to Pallet Top.1.9" - 24"
Spindle Taper ......................... CT40
Spindle Speed...............12,000 RPM
Spindle Motor.....................15/25 HP
Tool Station ................................. 60
Rapid Traverse Rates ..... 1,575 IPM
Machine Weight ............. 27,000 Lbs
Mach Dim ..... 190"L x 91"W x 111"H
Max Pallet Load................... 880 Lbs
Max Part Diameter .................. 23.6"
Max Part Height ...................... 31.5"
X Axis Travel ........................... 23.6"
Y Axis Travel .............................. 22"
Z Axis Travel ........................... 22.2"
Pallet Indexing....................1 Degree
Spindle Nose to Pallet Top.1.9" - 24"
Spindle Taper ......................... CT40
Spindle Speed...............12,000 RPM
Spindle Motor.....................15/25 HP
Tool Station ................................. 60
Rapid Traverse Rates ..... 1,575 IPM
Machine Weight ............. 27,000 Lbs
Mach Dim ..... 190"L x 91"W x 111"H
Options:
Fanuc
Chip Conveyor
Probe
Coolant Thru Spindle
360 Deg. Indexing Table
Portable Manual Pulse Generator
Work Light
3 Tier Signal Light
Full Enclosure
Chip Conveyor
Probe
Coolant Thru Spindle
360 Deg. Indexing Table
Portable Manual Pulse Generator
Work Light
3 Tier Signal Light
Full Enclosure
Owner:
Cris (Located in USA)
