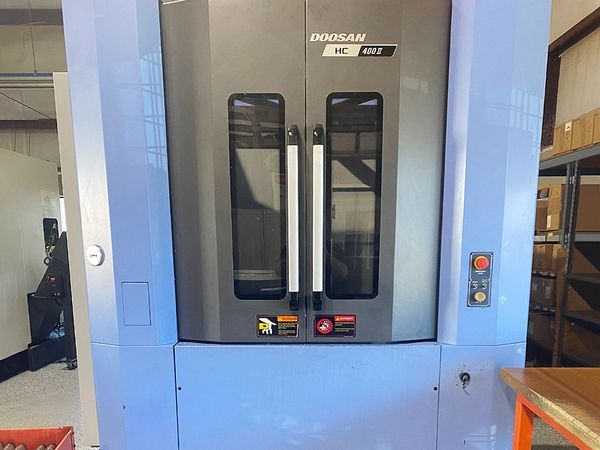

Pre-owned DOOSAN HC400-II 2017 Horizontal Machining Center. This Horizontal Machining Center has average cutting time and is equipped with a Fanuc control. This CNC Machine is currently located in USA. This DOOSAN Horizontal ...Read More
Notify Me:
Specs:
X Axis Travel: 23.6"
Y Axis Travel: 22"
Z Axis Travel: 22.2"
Rapid Rate X Axis: 1,575 IPM
Rapid Rate Y Axis: 1,575 IPM
Rapid Rate Z Axis: 1,575 IPM
Max Pallet Load: 882 LBS
Spindle Speed: 12,000 RPM
Spindle Motor: 25 HP
Spindle Taper: 40 CT
Tool Changer: 60 ATC
Cutting Feedrate: 1 - 1,574 ipm
Spindle Torque: 86 ft-lb
Power Transmission Type: Direct Drive
Maximum Workpiece Size: 23.6" x 31.5" (H)
Pallet Size: 15.7" x 15.7"
Weight: 26,800 LBS
Y Axis Travel: 22"
Z Axis Travel: 22.2"
Rapid Rate X Axis: 1,575 IPM
Rapid Rate Y Axis: 1,575 IPM
Rapid Rate Z Axis: 1,575 IPM
Max Pallet Load: 882 LBS
Spindle Speed: 12,000 RPM
Spindle Motor: 25 HP
Spindle Taper: 40 CT
Tool Changer: 60 ATC
Cutting Feedrate: 1 - 1,574 ipm
Spindle Torque: 86 ft-lb
Power Transmission Type: Direct Drive
Maximum Workpiece Size: 23.6" x 31.5" (H)
Pallet Size: 15.7" x 15.7"
Weight: 26,800 LBS
Options:
Fanuc i Series
Chip Conveyor
Probe
Coolant Thru Spindle
360 Deg. Indexing Table
360,000 Full 4th
Pallet Pool/FMS
Chip Conveyor
Probe
Coolant Thru Spindle
360 Deg. Indexing Table
360,000 Full 4th
Pallet Pool/FMS
