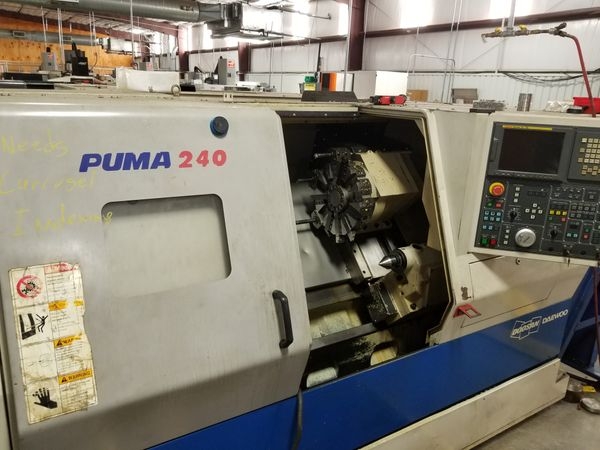

Pre-owned DOOSAN PUMA 240C 2006 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Fanuc 21i-TB control. This CNC Machine is currently located in Florida. This DOOSAN CNC Lathe is available for a limited time. Get a quote today on this PUMA 240C before it's gone.
Notify Me:
Specs:
Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 3,500 RPM
Spindle Motor: 25 HP
X Axis Travel: 9.5"
Z Axis Travel: 22.8"
Rapid Rate Z Axis: 1,200 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 13.8"
Max Turning Length: 21.6"
Max Swing: 21.7"
Spindle Nose: A2-8
Spindle Bore / Bar Cap: 3.38" / 3.03"
Weight: 9,600 LBS
Chuck Size: 10"
Spindle Speed: 3,500 RPM
Spindle Motor: 25 HP
X Axis Travel: 9.5"
Z Axis Travel: 22.8"
Rapid Rate Z Axis: 1,200 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 13.8"
Max Turning Length: 21.6"
Max Swing: 21.7"
Spindle Nose: A2-8
Spindle Bore / Bar Cap: 3.38" / 3.03"
Weight: 9,600 LBS
Options:
Fanuc 21i-TB
Chip Conveyor
Tool Presetter
Tailstock
Chip Conveyor
Tool Presetter
Tailstock
