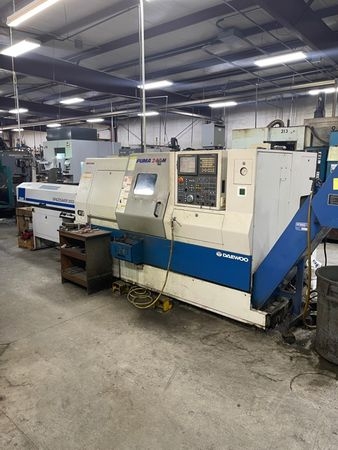

Used DOOSAN PUMA 240MC CNC Lathe
Pre-owned DOOSAN PUMA 240MC 2004 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Fanuc Oi-TB control. This CNC Machine is currently located in Florida. This DOOSAN CNC Lathe is available for a limited time. Get a quote today on this PUMA 240MC before it's gone.
Specs:
Bar Capacity: 3.03"/Thru Hole: 3"
Chuck Size: 10"
Spindle Speed: 3,500 RPM
Spindle Motor: 25 HP
X Axis Travel: 8.07"
Z Axis Travel: 22.8"
Rapid Rate Z Axis: 1,181 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 11.81"
Max Turning Length: 20.19"
Max Swing: 21.7"
Swing over carriage: 15.4"
Spindle nose: A2-8
Control: Fanuc 0i-TB
Dimensions: 135" x 66" x null"
Weight: 9,820 LBS
Chuck Size: 10"
Spindle Speed: 3,500 RPM
Spindle Motor: 25 HP
X Axis Travel: 8.07"
Z Axis Travel: 22.8"
Rapid Rate Z Axis: 1,181 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 11.81"
Max Turning Length: 20.19"
Max Swing: 21.7"
Swing over carriage: 15.4"
Spindle nose: A2-8
Control: Fanuc 0i-TB
Dimensions: 135" x 66" x null"
Weight: 9,820 LBS
Options:
Fanuc Oi-TB
Chip Conveyor
Bar Feeder
Live Tooling
Chip Conveyor
Bar Feeder
Live Tooling
Owner:
Tim (Machine Shop in USA)
