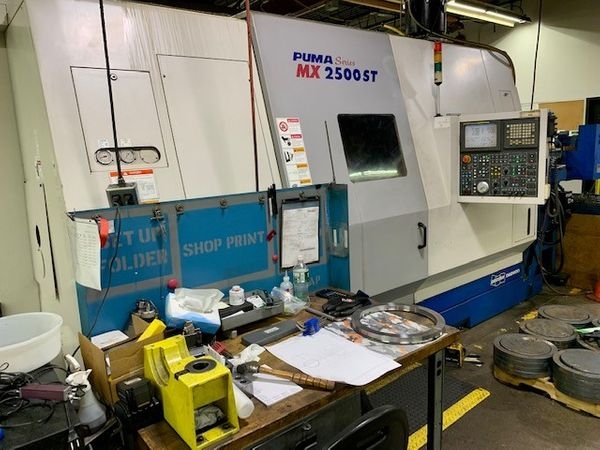

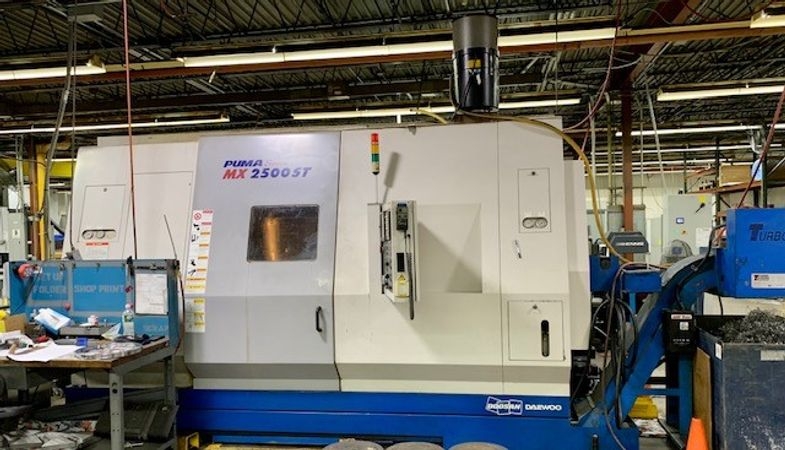

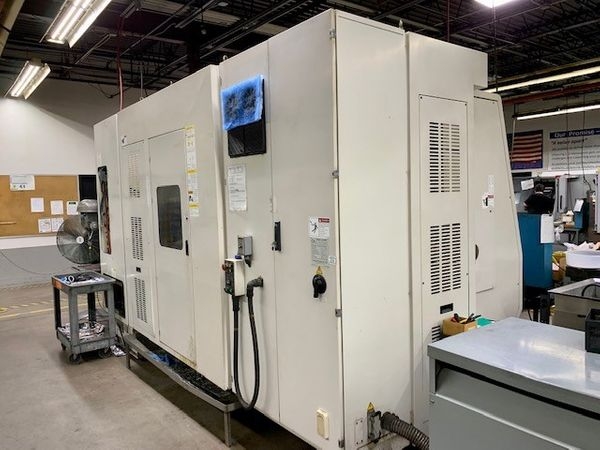

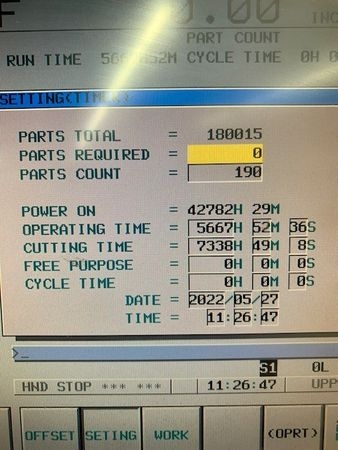

Pre-owned DOOSAN PUMA MX2000-2500ST 2006 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Fanuc 18i-TB control. This CNC Machine is currently located in USA. This DOOSAN CNC Lathe is available for a...Read More
Specs:
9 Axis CNC Mill Turn
Bar Capacity: 2.6"
Chuck Size: 8" (Front/Rear Spindles)
Spindle Speed: 5,000 RPM Each
Spindle Motor: 29.5 HP
X Axis Travel: 21.9"
Z Axis Travel: 43.1"
Y Axis Travel: 3.15" (Milling)
Rapid Rate Z Axis: 944 IPM

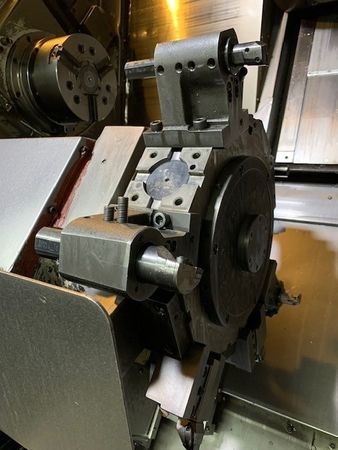

Turret Tools: 12 Station (Lower Station Turret)
Rapid Rate X Axis: 944 IPM
Max Turning Dia: 9.84"
Max Turning Length: 40.2"
Milling Spindle: 10,000 RPM
Dimensions: 178" x 91" x 102"
Weight: 26,455 LBS
Bar Capacity: 2.6"
Chuck Size: 8" (Front/Rear Spindles)
Spindle Speed: 5,000 RPM Each
Spindle Motor: 29.5 HP
X Axis Travel: 21.9"
Z Axis Travel: 43.1"
Y Axis Travel: 3.15" (Milling)
Rapid Rate Z Axis: 944 IPM
Turret Tools: 12 Station (Lower Station Turret)
Rapid Rate X Axis: 944 IPM
Max Turning Dia: 9.84"
Max Turning Length: 40.2"
Milling Spindle: 10,000 RPM
Dimensions: 178" x 91" x 102"
Weight: 26,455 LBS
Options:
Fanuc 18i-TB
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis

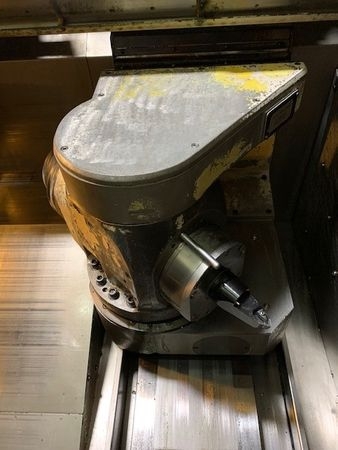

B Axis Milling Head
Capto C6 Holders
Lower Turret
40 Position ATC
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
B Axis Milling Head
Capto C6 Holders
Lower Turret
40 Position ATC
