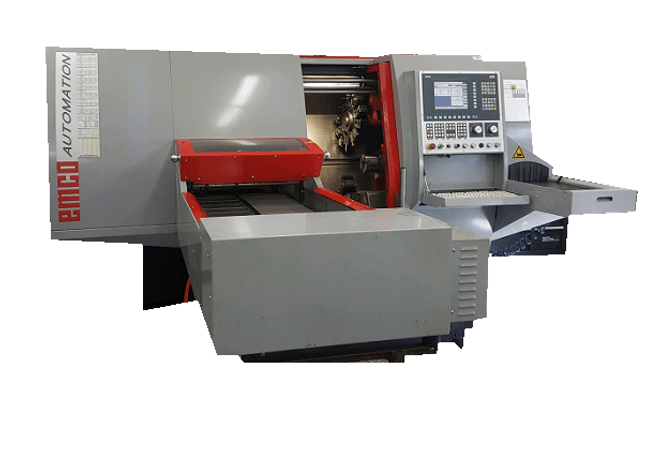

Used EMCO MAIER ET332MC CNC Lathe
This 2009 EMCO MAIER ET332MC CNC Lathe is a great CNC lathe for any shop looking to increase their production capabilities. This machine features a Seimens 840D CNC Control, allowing for precise and accurate machining of parts. The ET332MC also comes with several options and upgrades that can be added to the lathe in order to further enhance its performance. The Parts Catcher option allows for quick and easy removal of finished parts from the spindle without having to manually remove them by hand. Live Tooling provides additional flexibility when machining complex shapes, as it allows tools such as drills or taps to be used while the part is still spinning on the spindle. The C Axis option adds an extra degree of freedom when cutting complex shapes, allowing users to cut along multiple axes simultaneously. The Sub Spindle option enables two different operations on one part at once, increasing productivity significantly compared to single-spindle machines. The Twin Turret upgrade gives users access to two turrets instead of just one, providing more tooling capacity than ever before. Additionally, this machine can be outfitted with a Parts Loader which automates loading and unloading processes so that operators don’t have to do it manually each time they need new material or want finished parts removed from the spindle area. Finally, an Exit Conveyor and Transformer are available if needed in order for shops using this machine in their production process get even more out of it than ever before! Overall, this 2009 EMCO MAIER ET332MC CNC Lathe is an excellent choice for any shop looking for increased productivity through automation and precision machining capabilities thanks its wide range of options and upgrades available with it!
Chuck Size: 8"
Spindle Speed: 8,000 / 7,000 (MAIN/SUB) RPM
Spindle Motor: 13.4 HP
X Axis Travel: 6.3"
Z Axis Travel: 20"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 787 IPM
Max Turning Dia: 8.66"
Max Turning Length: 18.9"
Max Swing: NA"
Dimensions: 103" x 78" x 76"
Weight: 8,000 LBS
Parts Catcher
Live Tooling
C Axis
Sub Spindle
Twin Turret
Parts Loader
Exit Conveyor
Transformer
$44,500
