X Axis Travel: 31.5"
Y Axis Travel: 31.5"
Z Axis Travel: 31.5"
Spindle Speed: 15,000 RPM
Spindle Taper: CAT40 CT
Spindle Motor: 50 HP
Tool Changer: 60 ATC
Fanuc 31iMB control Included
Fanuc 50HP spindle drive Included
BIGPlus/CAT 40 spindle taper, interchangeably Included
Two (2) 500mm Pallets with 24 M16 tapped holes Included
Rotary automatic pallet changer Included
60-tool automatic tool changer Included
15,000 RPM integral spindle Included
Full fourth [B] axis Included
Mosnic high volume rolling filter chip conveyor with magnetic separator Included
Spindle air curtain Included
Spindle oil chiller Included
Through spindle coolant 256 PSI at 15 GPM [seals to 1,000PSI for future upgrade] Included
Spindle flood coolant Included
Bed flush coolant Included
Ceiling shower coolant Included
Refrigerated & temperature controlled spindle, ballscrews and servo motor mounts Included
Spindle/rapid/feedrate override Included
LED work light Included
Three stage stack light Included
Total enclosed splashguard with manual operated doors Included
CE Spec Included
Inch/metric switchable capability Included
Helical interpolation Included
Coordinate Rotation Included
2MB total program memory Included
Automatic corner override Included
Tool offset memory type C Included
200 tool offsets Included
Custom macro B Included
Dimensions: 194" x 111" x "
Weight: 27,000 LBS
Advancing the technology of ultra-high performance for
stand-alone production, lean lines or agile machining systems.
• 90M/min (3,543 IPM) rapid traverse rates on X/Y/Z
• 1.0 G (9.8 M/sec²) axis acceleration/deceleration on X/Y/Z
• Dual range 50 HP gearless AC spindle features ceramic bearings
• Refrigerated & temperature controlled spindle and ballscrews
• Spindle ramps to 15,000 RPM in just 1.9 seconds
• High torque 250 Nm spindle as standard
• Accuracy 0.000080”, full travels on X/Y/Z, repeatability ± 0.000040”
• Automatic Tool Changer with 1.2 second tool-tool, 3.2 second chip-chip
• Rotary Automatic Pallet Changer exchanges 1,100 lbs./pallet in 7 seconds
• Large work area, compact footprint - ideal for FMS Pallet Systems
• Design for reliability - 5,000 hour mean time between failure (MTBF5000H)
40
TAPER PALLET
500

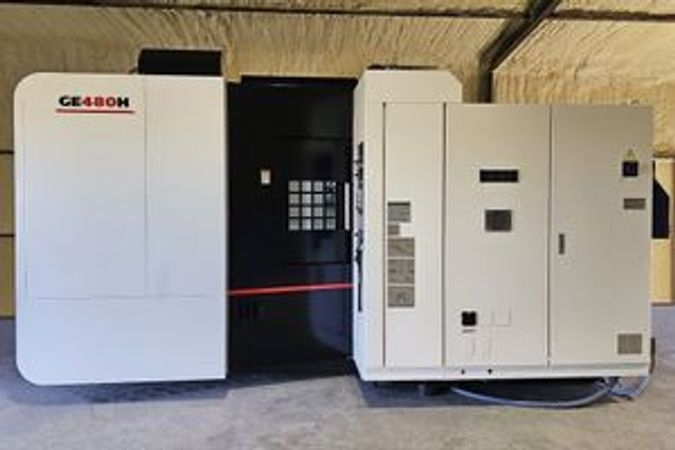

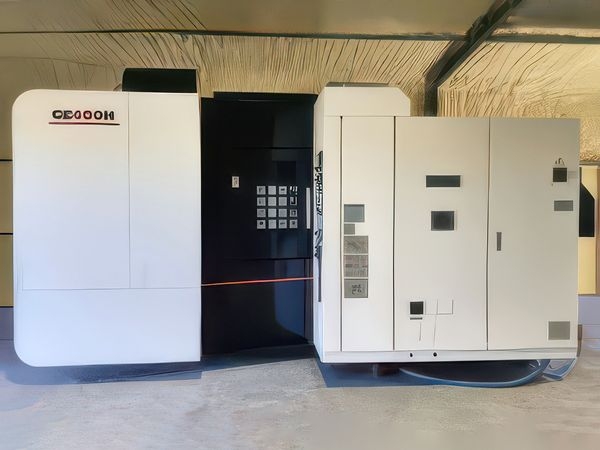

GE480H MACHINE SPECIFICATIONS
Enshu (USA) Corporation
404 E. State Parkway
Schaumburg, IL 60173
Tel: (847) 839-8105
Fax: (847) 839-8226
www.enshuusa.com
info@enshuusa.com
ver. 042017
JAPAN
AXIS TRAVEL STANDARD EQUIPMENT
X Axis 31.5" • Fanuc 31iMB control
Y Axis 31.5" • Fanuc 50 HP spindle drive
Z Axis 31.5" • Fanuc axis servo drives
Table top to spindle centerline 2.75"~34.25" • BIG Plus/CAT40 spindle taper, interchangeably
Table centerline to spindle face 5.9" ~ 37.4" • 500 mm pallets (19.7" x 19.7")
• Rotary automatic pallet changer
FEEDRATES • 60-tool automatic tool changer
Rapid traverse (X/Y/Z) 3,543 IPM • 15,000 RPM integral spindle
Cutting feedrate 0 ~ 3,543 IPM • Ceramic spindle bearings
Acceleration/Deceleration (X/Y/Z) 1.0g (9.8 M/sec²) • Full 4th axis (360,000 positions)
Feed motors, AC Servo 7.4 HP (X/Y/Z) • High volume rolling filter chip conveyor
• Spindle air curtain
SPINDLE • Spindle oil chiller
Spindle taper BIG Plus/CAT40 interchangeably • Coolant thru-spindle (256 PSI)
Spindle bearing diameter 2.8" (4 Bearing) • Spindle flood coolant
Spindle power/type 50 HP/integral • Bed flush coolant
Full power developed at • Ceiling shower coolant
Low Range 1,061 RPM • Refrigerated & temperature controlled spindle and ballscrews
High Range 5,000 RPM • Manual pulse generator
Spindle ramp-up time 1.9 seconds (15,000 RPM) • Spindle speed override
Rigid tapping (max. rpm) 4,000 RPM • Feedrate/rapid traverse override
Lubrication type Air-oil mist, refrigerated • LED work light
• Three-stage stack light
ACCURACY • Totally enclosed splash guard with manual operated doors
Positioning, full stroke (X/Y/Z) 0.000080” • Door interlock
Repeatability +/- 0.000040” • CE spec
• Inch/metric switchable capability
AUTOMATIC TOOL CHANGER • Helical interpolation
Magazine capacity 60 (118, 180) • 2MB total program memory
Maximum tool diameter 2.95" • Automatic corner override
• Tool offset memory type C
• 200 tool offsets
• Custom macro “B”
• Additional macro variables
• Additional registrable programs
• High speed skip
with adjacent pockets empty 6.3”
Maximum tool length 13.78"
OPTIONS AVAILABLE
Maximum tool weight
• HSK 63A spindle taper
Full speed 17.6 lbs.
• 118 & 180 tool capacity ATC
Reduced Speed (programmable) 26.4 lbs.
• 20,000 RPM spindle
Tool change time (tool-tool) 1.2 seconds
• Spindle probe
Tool change time (chip-chip) 3.2 seconds
• Broken tool detector
• Tool life management
AUTOMATIC PALLET CHANGER
• Additional tool offsets to 999
Pallet size 19.7” x 19.7"
• Additional work coordinates to 300 sets
Capacity per pallet/total 1,100 lbs./2,200 lbs.
• Enshu die mold package
Minimum index 1° (360 positions)
• Dataserver with fast Ethernet
Pallet index time (90° index) 1.2 seconds
• FMS pallet systems
Pallet change time 7.0 seconds
MACHINE ELECTRICS
AC 200/220V ± 10%, 3 Phase, 60Hz 60 KVA
MACHINE DIMENSIONS & WEIGHTS
L x W x H 229" x 110" x 117"
(length includes chip conveyor)
Weight 27,000 lbs.
